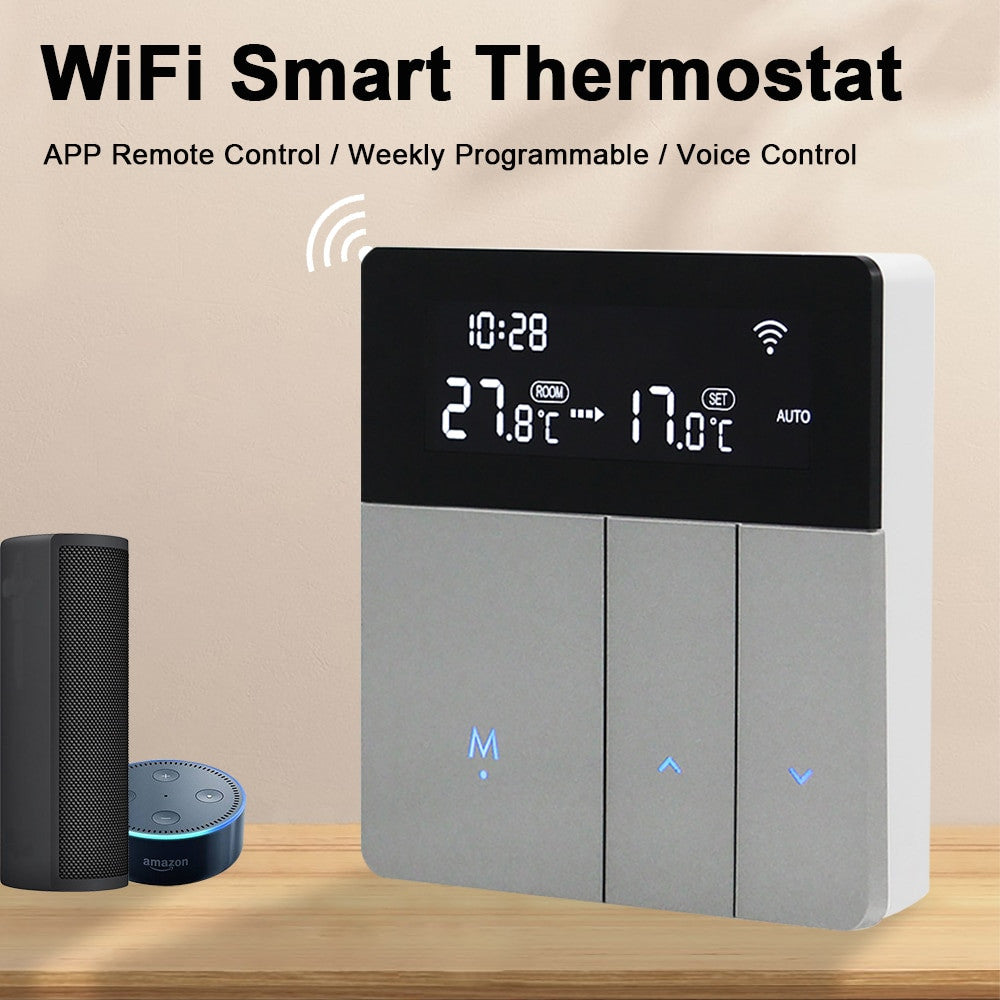

WIFI Thermostat Smart 16A/3A 230V Temperature Controller Electric Heating Water/Gas Boiler Tuya APP Remote Control Alexa Yandex

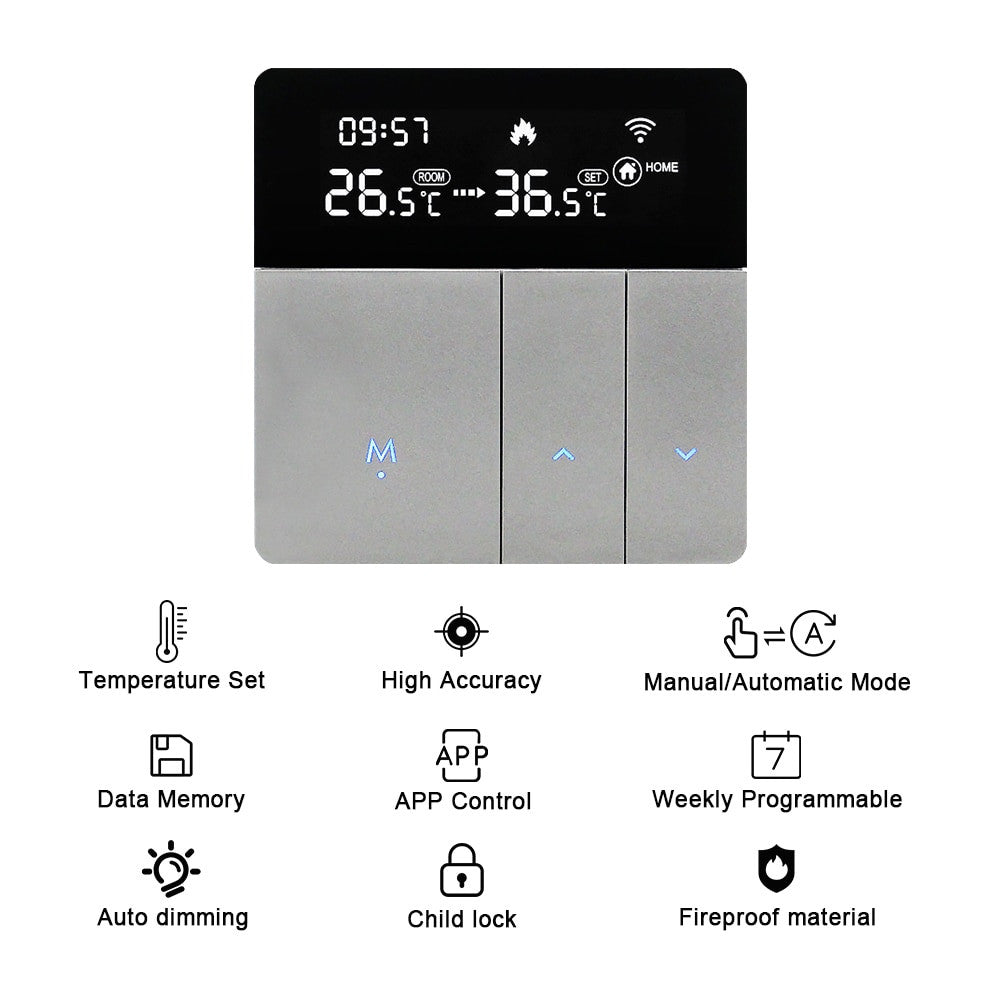

Functions

• Manual/ Auto Mode
• Children lock function
• Data memory when power off
• Weekly Programmable
• Voice Control:Work with Yandex Alice,Amazon Alexa,Google home

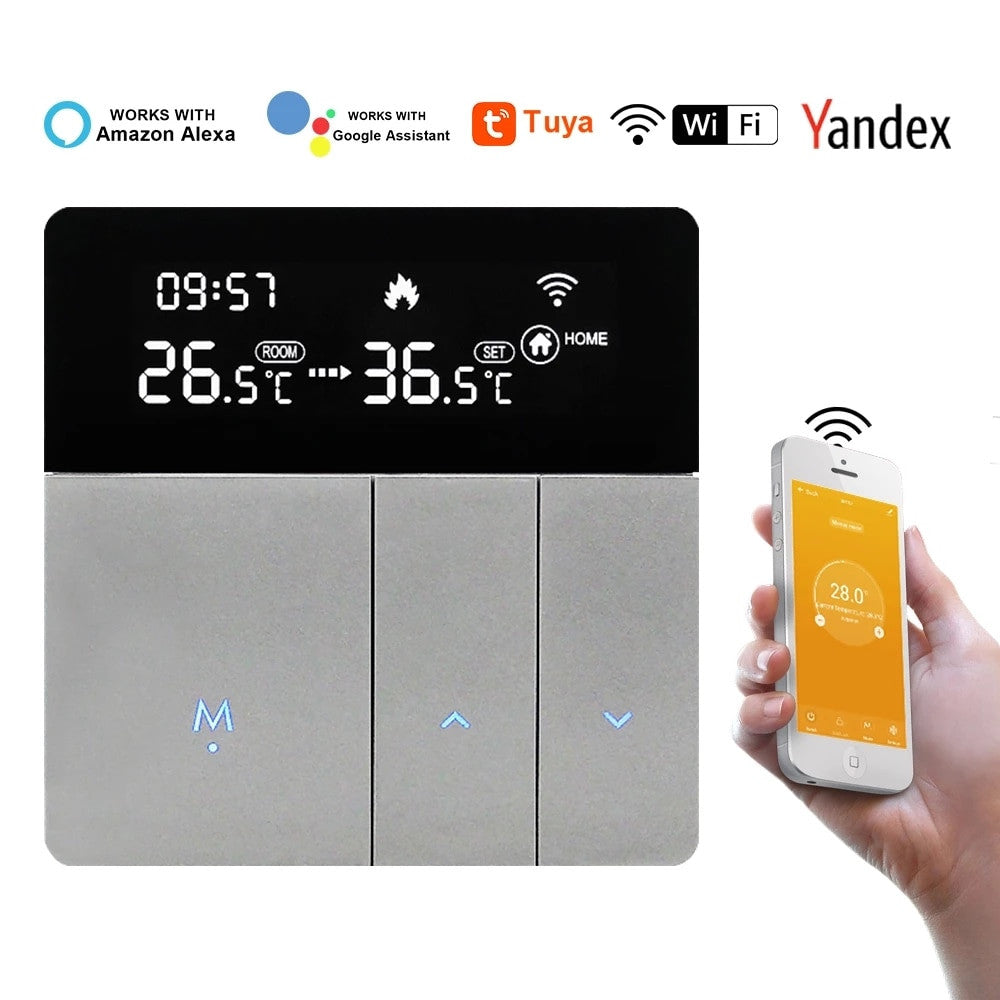

• APP Remote Control: Turn on your device before you come back home (APP: Tuya )
• Application : Suitable for electric heating/water gas boiler. Perfect for home, office, shopping mall, hotel, etc.

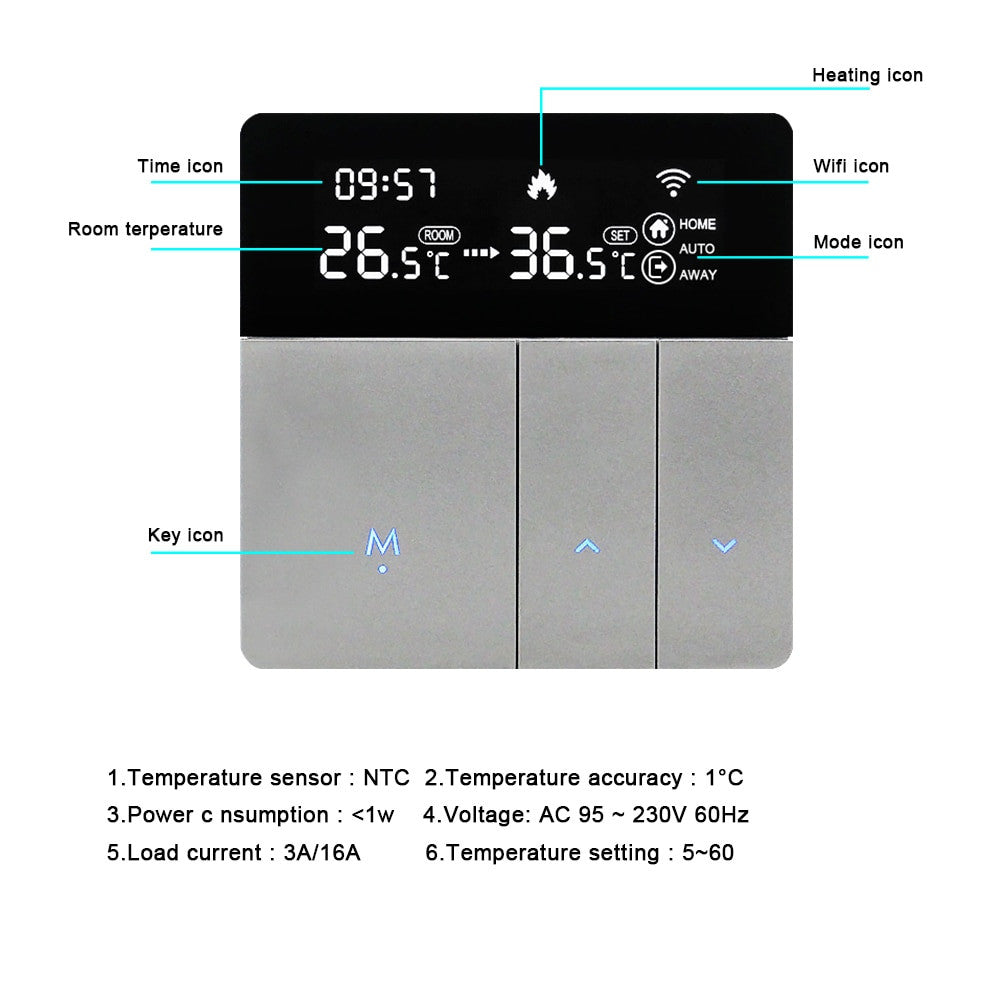

Features

• Power: AC95-230V, 60Hz
• Temperature Display range: 0~51oC
• Temperature control range: 5~60oC
• Accuracy: +/- 1 ℃
• Probe sensor: NTC(10K)1%, 3 meters cable (Only 16A have external sensor , 3A without external sensor )
• Output: <16A(Electric) AC 100-240V
• Probe sensor: NTC(10K)1%, 3 meters cable
• Load: 3A for water/gas boiler ( Build-in sensor, no external sensor), 16A for electric heating(Build-in sensor, with external sensor)

Operating Instruction

• 1. Power on/off: Long press M for 5 seconds on/off the themostat.

• 2. Press the M key to switch between manual and automatic modes.

• 3. Long press M key and ∨ key to enter the clock setting, press M key to switch Settings Item, press ∧ and ∨ keys to adjust the value of each parameter. Note: the time of WIFI model will be Automatically gets Internet time

• 4. Press ∧ and ∨ for 5 seconds to add or cancel the child lock.

• 5. WIFI link: When the thermostat is on, long press ∧ button for 5 seconds and the thermostat display will come out Now the WIFI icon flashes, at this time the thermostat into the state of code.

Package Content

• 1 x Thermostat

• 1 x NTC Sensor (No sensor for 3A thermostat)

• 1 x User Manual

• 2 x Screw

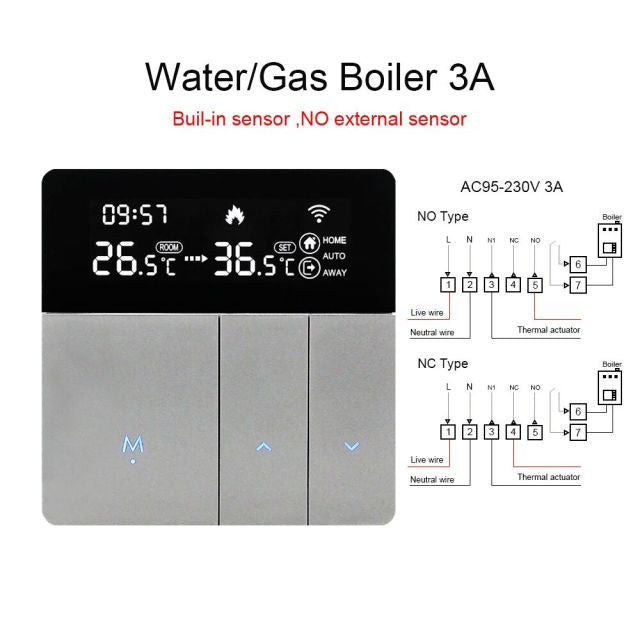

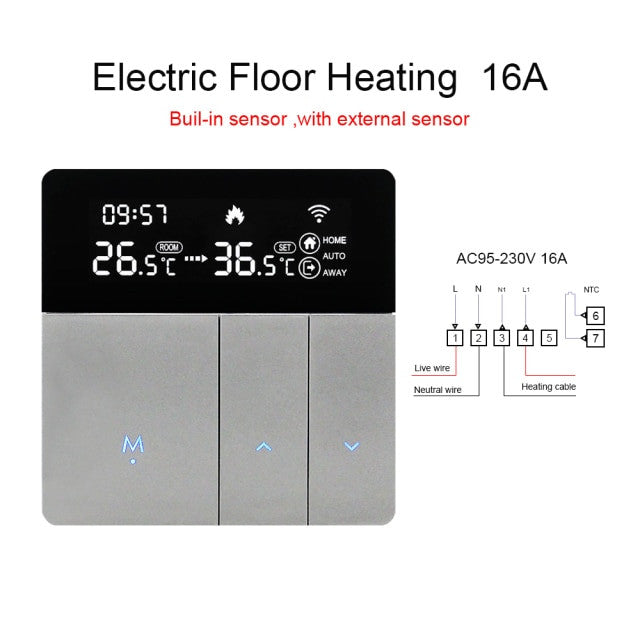

Wire Connection:
