WIFI Smart Touch Thermostat LCD Screen Backlight Water Heating Electirc Floor Heating Water Gas Boiler Temperature Controller Wireless Remote Voice Control Tuya Smart Life App work with Amazon Alexa Google Assistant
Note:
Model: BHT-600-GA/BHT-002-GB/BHT-002-GC Do not include Wi-Fi Function.
Model: BHT-600-GALW/BHT-002-GBLW/BHT-002-GCLW/ Include Wi-Fi Function.
Sensor is not included for GA/GC. If needed, choose sensor also.
Model Definition:
[BHT-600-GA]: Water Heating 3A
[BHT-600-GB]: Electric Floor Heating 16A
[BHT-600-GC]: Water/Gas Boiler 3A
[BHT-600-GALW]: Water Heating Wifi Voice Contorl 3A
[BHT-600-GBLW]: Electric Floor Heating Wifi Voice Control 16A
[BHT-600-GCLW]: Water/Gas Boiler Wifi Voice Control 3A
Modbus or RS485 is Optional. If needed, contact us.
On Functionality
1. Powerful Functions Are Available Such as BACnet/Modbus/Wifi etc.
2. 0.5℃ Accuracy Keeps temperature within the level you set
3. ℃ & ℉ is changeable (Customized Function)
4. Data Memory when power is off
5. 5+2 Six periods Programmable Maximize Comfort and Economy
Technical Data
Type: Water Heating/Electric Heating/Water Gas Boiler
Sensor: NTC, 10K
Accuracy: ±0.5℃ or ±0.1℉
Set Temp. Range: 5-35℃
Room Temp. Range: 5-99℃
Power Consumption: ＜1.5W
Timing Error: ＜1%
Power Supply: 95-240VAC, 50-60Hz
Current Load: 3A(Water heating, water/gas boiler) | 16A(Electric heating)
Shell Material: PC+ABS(Flame retardant)

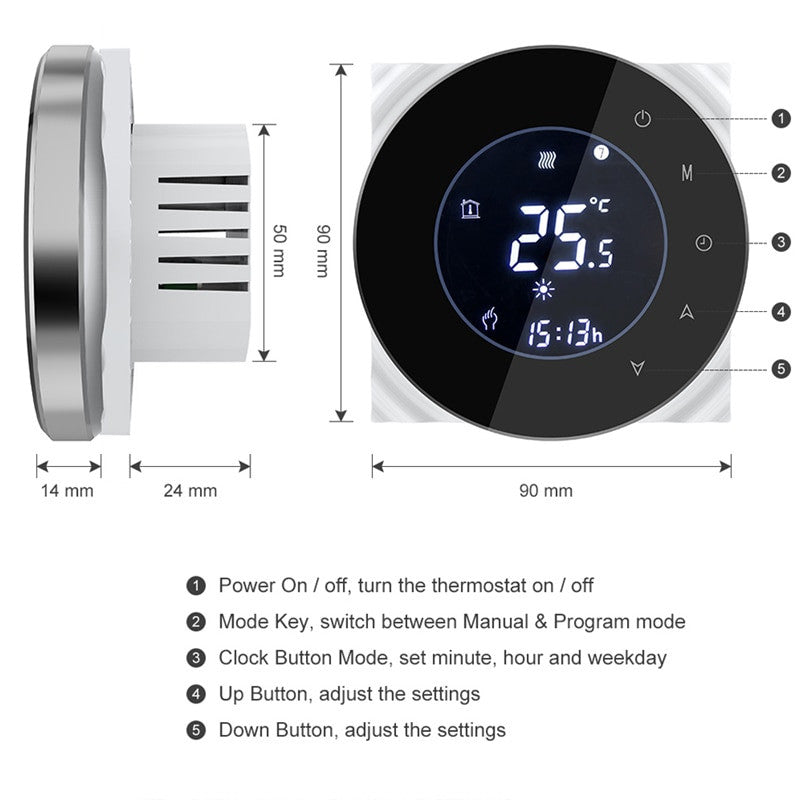

Dimension: 86x86x13.3mm
Ambient Temp.: 0-45℃, 5-90% RH (non-condensing)
Storage Temp.: -5-45℃
Installation Hole Distance: 60mm
Protection Level: IP30
Buttons: Capactive Touch Buttons
Wire Terminals: Wire 2*1.5mm² or 1*2.5mm²
Packing List
Thermostat x1 + Screw x2 + English Manual x1
Floor Sensor is included for Electric floor heating thermostat.
GA and GC is not included, if needed, choose together when place order.
What He Can Offering
1. [Energy Saving]: Low consumption and energy saving. Help you save money
2. [ Program]: Thermostat works automatically during holidays in programmable mode.
3. [Kid Lock]: Kids lock function avoid kids mis-operate the thermostat
4. [Dual Sensor]: Integrated Sensor to measure air temperature
5. [Memory]: Built-in Battery, setting can be recovery even cutting electric power or power failure

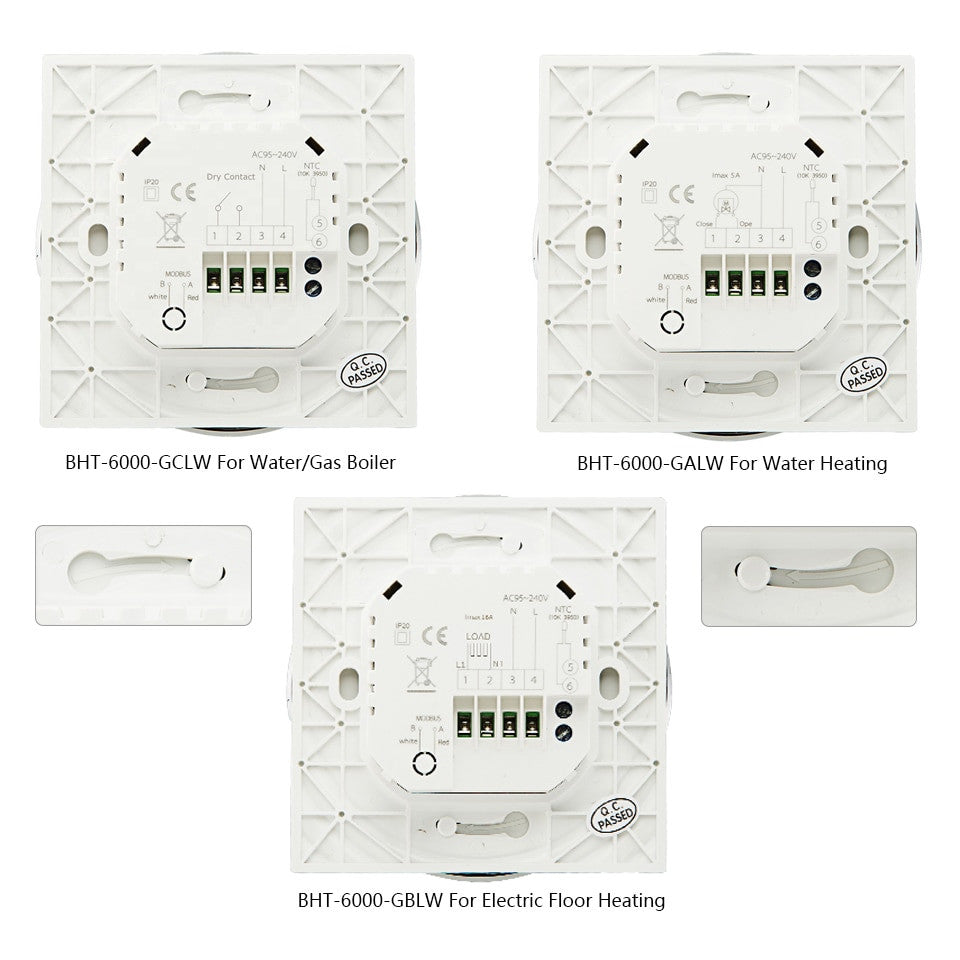

GB GA GC
Electric Floor Heating 16A Water Heating 3A Gas Boiler 3A
INSTALLATION Your thermostat is suitable foe installation within a standard 86mm pattress box or European 60mm pattress box Step 1. Keep power off. See Fig 1 Step 2. Remove the mounting Plate by rotating the LCD part. See Fig 2. Step 3. Connect power supply, load into the appropriate terminals. (see "Wiring your thermostat" for details and Fig 3). Step 4. Fix the mounting plate into the wall with screws in the box. See Fig 4. Step 5. Fasten body of the thermoatat and the mounting plate through rotating. See Fig 5. Step 6. Installation complete. See Fig 6.
