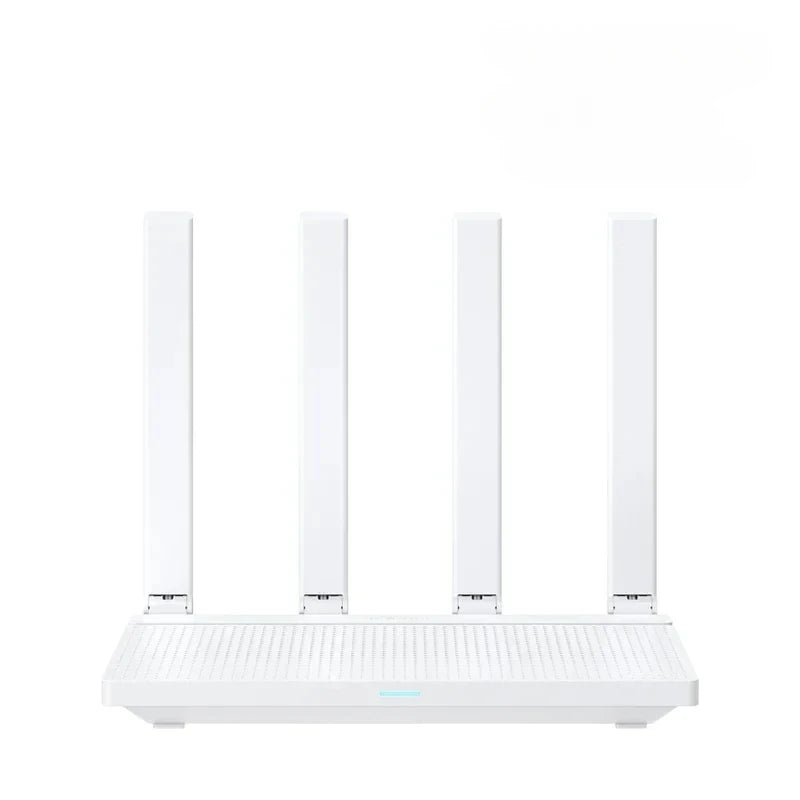

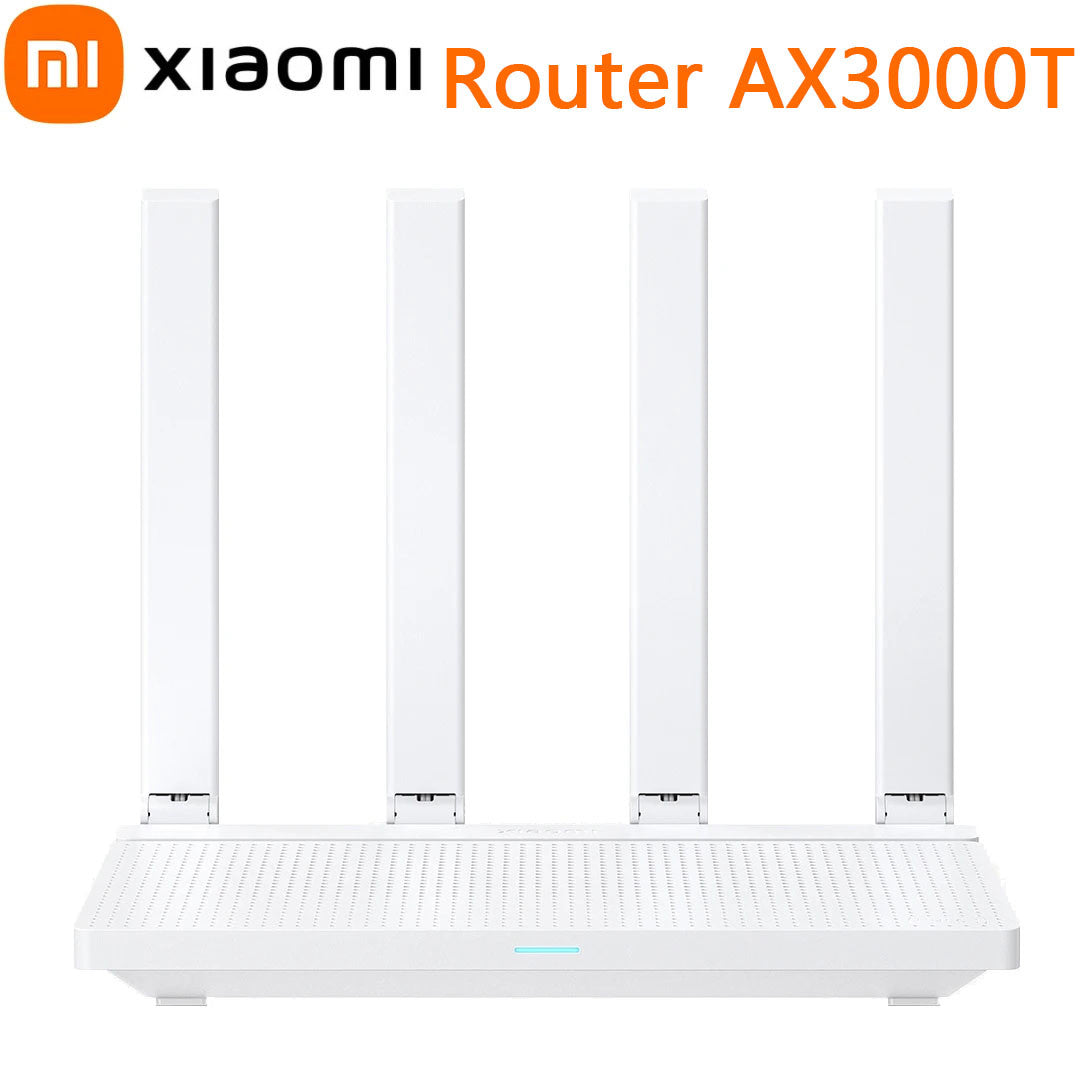

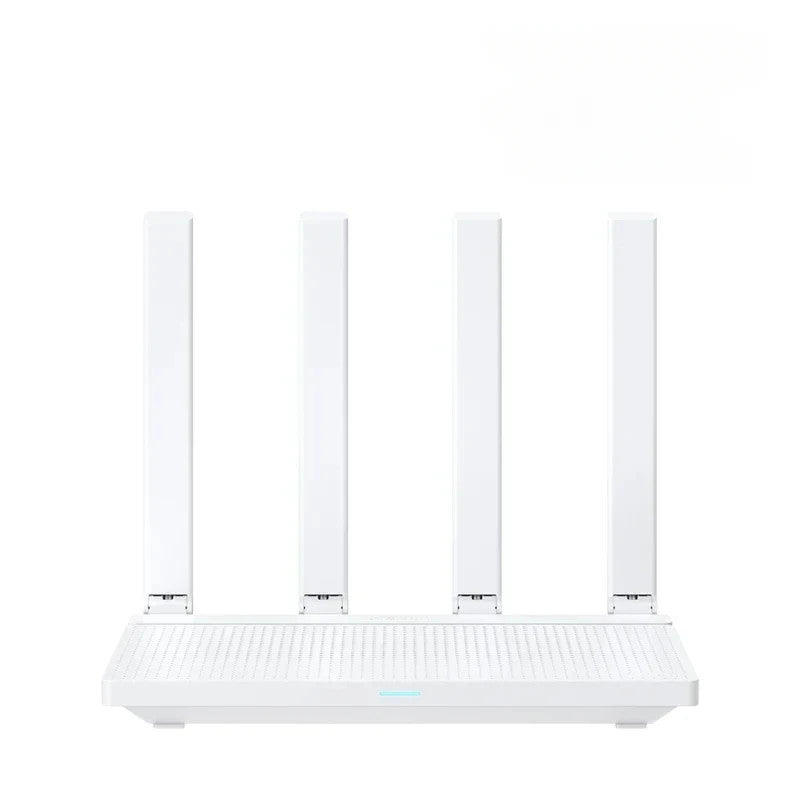

Experience next‑level home networking with the Xiaomi Router AX3000T Mesh WiFi 6 system. Designed to deliver fast, reliable coverage across your home, it combines dual‑band 2.4 GHz and 5 GHz performance with a theoretical total throughput up to 3000 Mbps. Four external antennas, a robust dual‑core processor, and flexible port options make it ideal for streaming 4K, online gaming, and a growing smart‑home setup.

Key capabilities

• WiFi 6 (IEEE 802.11ax) with 2x2 streams on 2.4 GHz up to 574 Mbps and 2x2 streams on 5 GHz with 160 MHz up to 2402 Mbps.
• Combined throughput up to 3000 Mbps for smooth multitasking across devices.

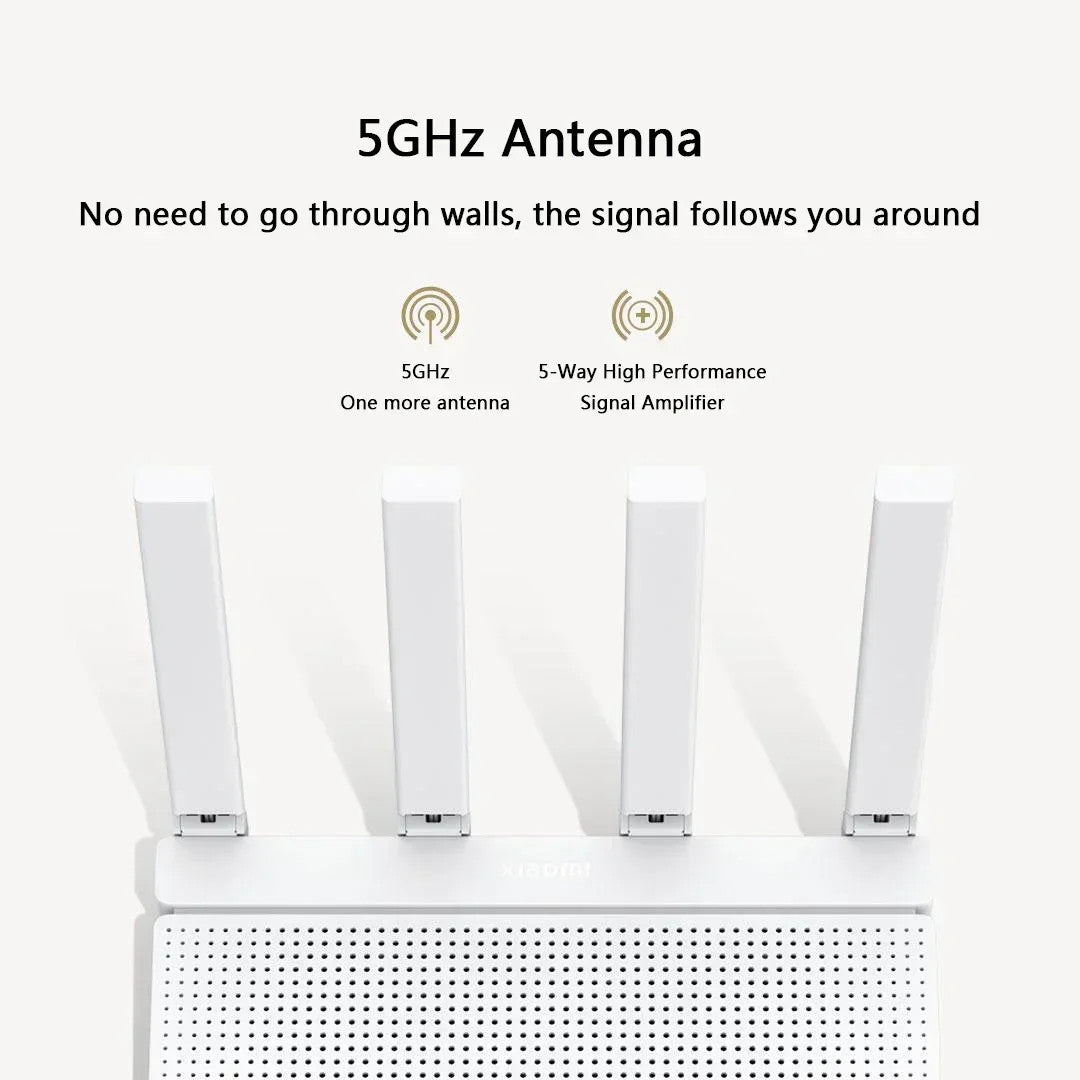

• Four antennas for enhanced coverage and signal stability across multi‑room homes.
• Dual WAN support and four adaptive WAN/LAN ports (Auto MDI/MDIX) for flexible network topology.
• Mediatek Filogic 820 dual‑core 1.3 GHz CPU to handle multiple tasks with ease.
• Mesh button for quick setup in a mesh network and management through Mi Home App.
• Wireless security includes WPA3 SAE encryption, WPA PSK/WPA2 PSK, access controls, and SSID hiding.
• Management via Web interface and Mi Home App for convenient setup and monitoring.

Compatibility and setup

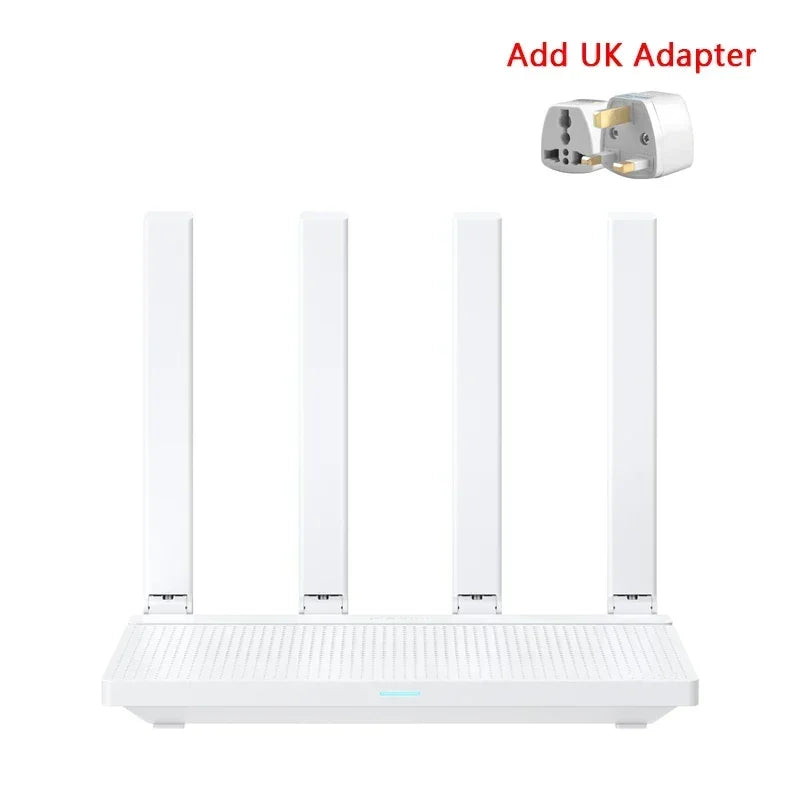

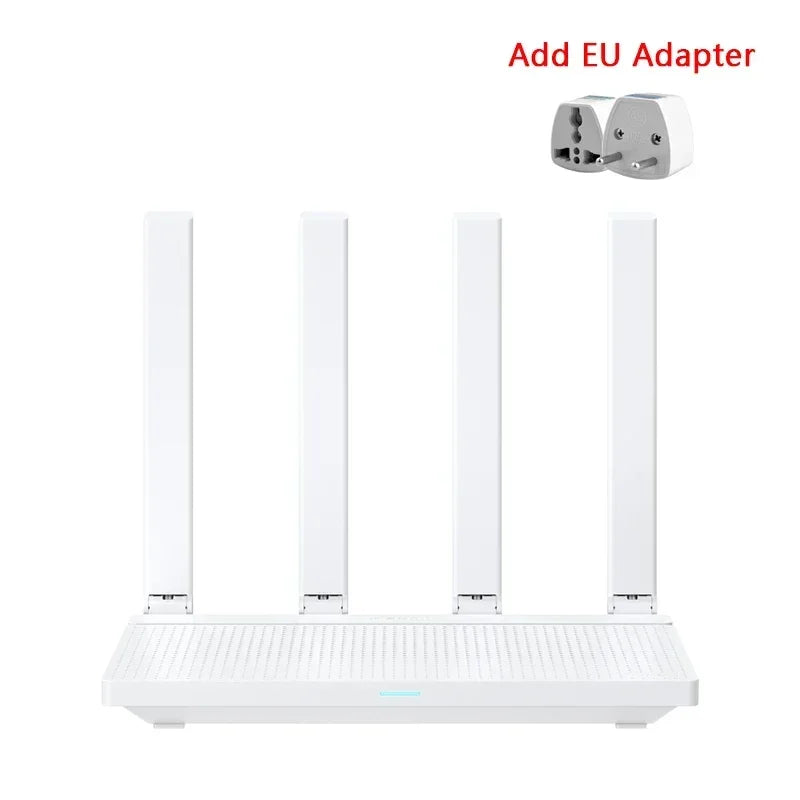

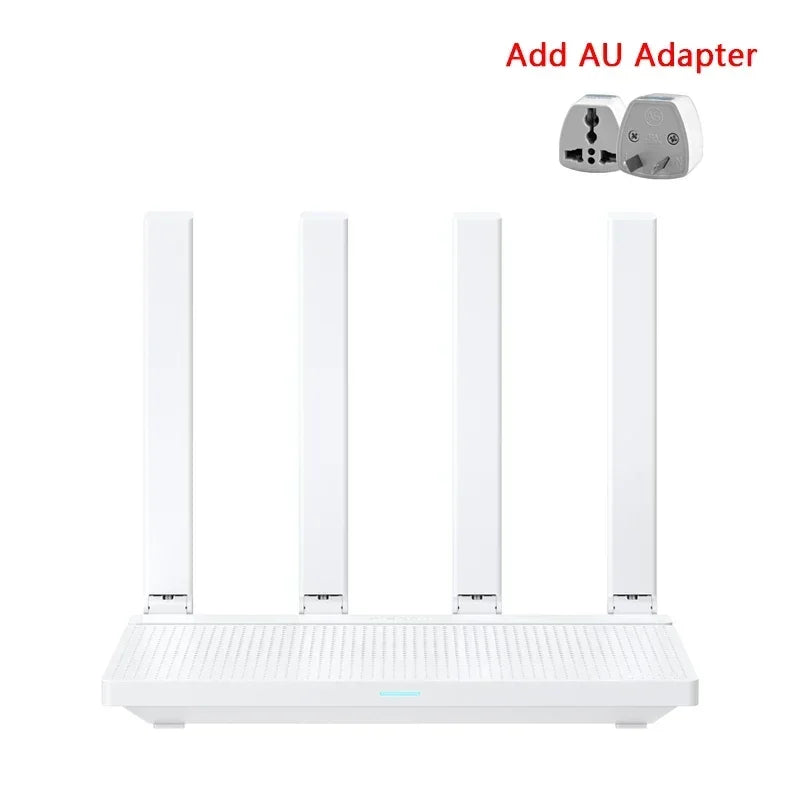

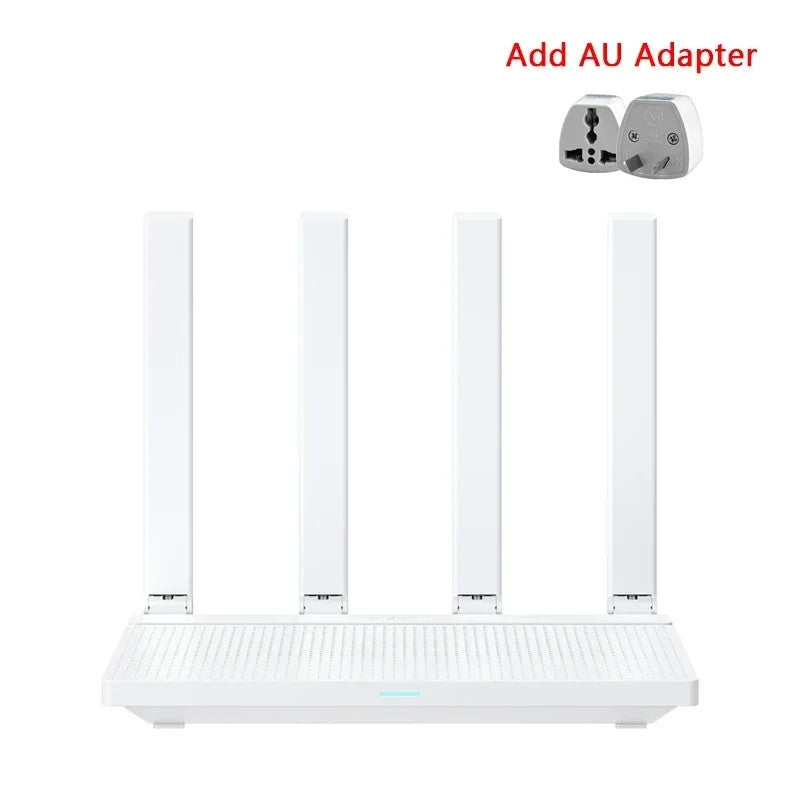

This model is the Chinese version with a Chinese language interface. The router ships with a CN plug, and buyers can choose the plug type appropriate for their country. Mi Home App support enables streamlined setup, device management, and integration with your existing Xiaomi ecosystem.

What’s in the box

• Router × 1
• Network cable × 1
• Adapter × 1
• Instructions × 1

Specifications

• Product name: Xiaomi Router AX3000T
• Processor: Mediatek Filogic 820 dual‑core 1.3 GHz
• 2.4G Wi‑Fi: 2×2 (up to 574 Mbps)
• 5G Wi‑Fi: 2×2 160 MHz (up to 2402 Mbps)
• Product antenna: 4 pieces
• Heat dissipation: natural heat dissipation
• Interfaces: 4 × 10/100/1000M adaptive WAN/LAN ports (Auto MDI/MDIX)
• LED indicator light: 1
• System reset button: 1
• Mesh button: 1
• Power input: 1
• Protocol standards: IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab
• Operating standards: GB/T 9254.1-2021; GB 4943.1-2022
• Wireless parameters: 2.4 GHz and 5 GHz bands with specified channel lists and modulation methods as detailed
• Wireless security: WPA PSK/WPA2 PSK/WPA3 SAE, access control, SSID hiding
• Management application: Web and Mi Home App (Android BiOS)
• Dimensions: including antenna 225mm × 172mm × 208.8mm; without antenna 225mm × 172mm × 51mm
