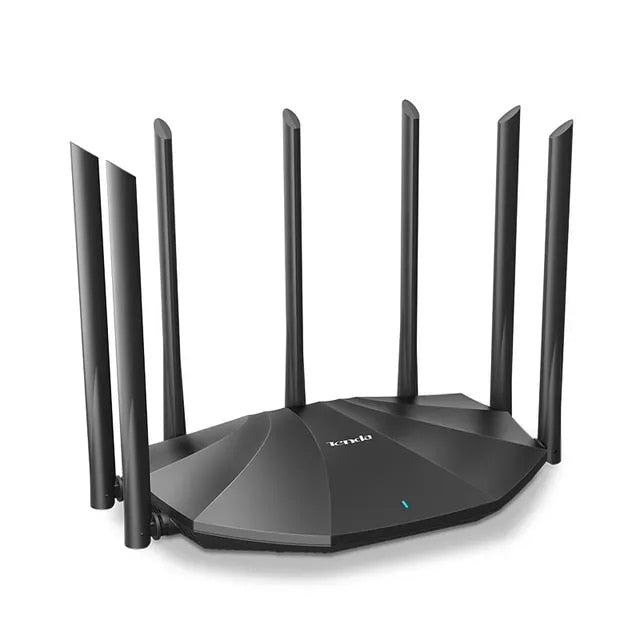

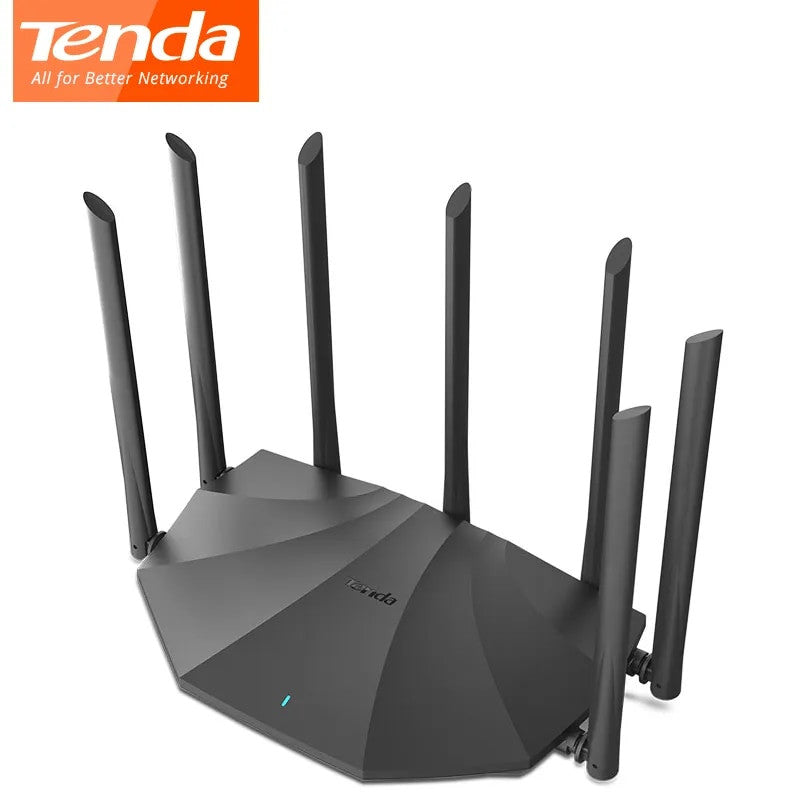

Tenda AC23 AC2100 Router Gigabit 2.4G 5.0GHz 11AC Dual-Band 2033Mbps Wireless Router Wifi Repeater with 7 High Gain Antennas

Note: Dear friend, AC23 in this link is without the retail package, if you need the box, pls click the following picture to get it, thanks!



Introduction For Tenda AC2100


AC23 is a dual-band gigabit wireless router, adopted with 802.11 ac wave2 techonology and provides speed up to 2033 Mbps to get the most out of your gigabit fiber internet.


Main Features(Why Choose Tenda AC2100?)


  • 4x4 MU-MIMO for 5GHz Band

  • Built-in Signal Amplifier for Main Chip

  • 7*6dBi External Antennas for Better WiFi Signal

  • Support Fiber Internet Up to 1000Mbps

  • Multi-core Design Bring a More Stable Operation

  • Support IPv6 Protocol

  • Multi language firmware optional



More Details

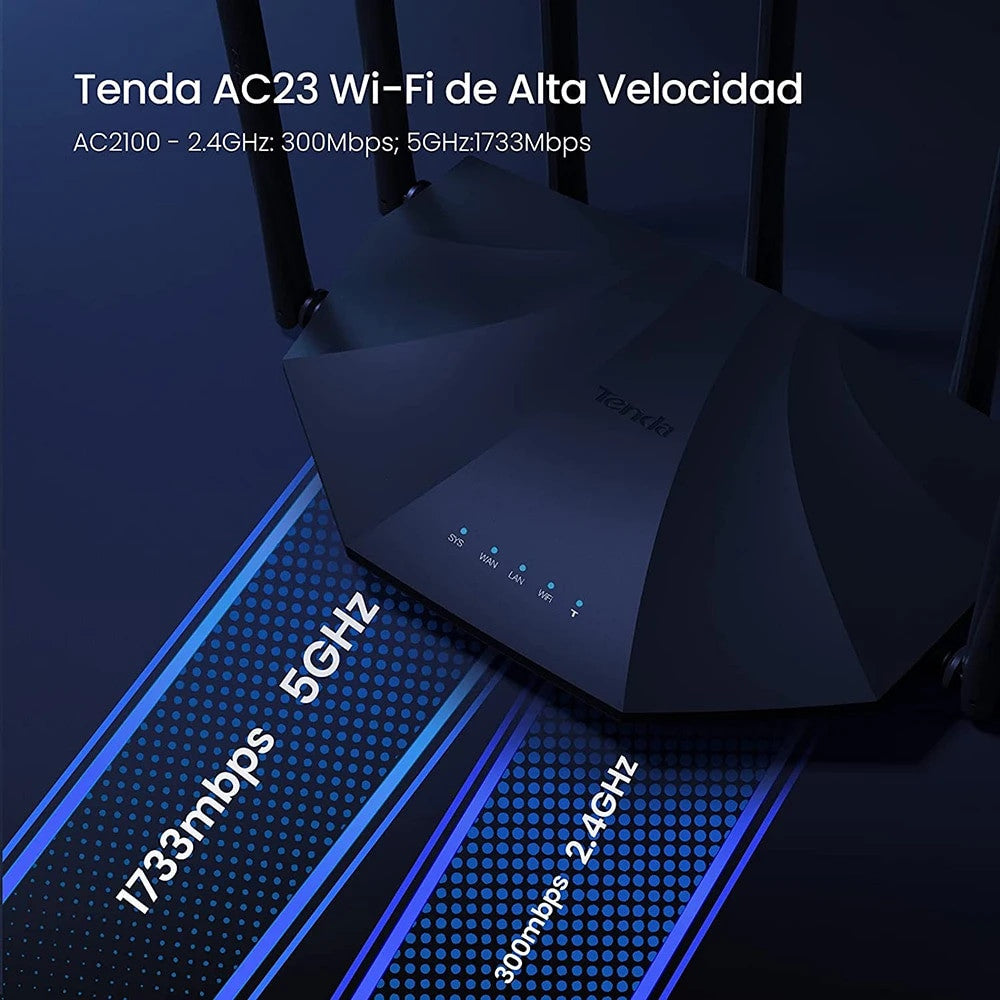

AC2100 With Advanced WiFi Speed of 2033 Mbps


AC23 supports 802.11ac wave2 technology, and the dual-band concurrent rate is up to 2033Mbps,


which is faster than AC1900; the 5GHz frequency band is up to 1733Mbps, which can meet high-


bandwidth applications such as 4K video, online live broadcast, and 3D games, making your


Internet more faster



4x4 MU-MIMO for 5GHz Band


Powered by 4X4 MU-MIMO techonology of 5 GHz band, it provides wider WiFi coverage and faster WiFi


speed than regular routers with 3X3 MU-MIMO techonology.






Built-in Signal Amplifier for Main Chip


Built-in signal amplifier used both on 2.4GHz and 5GHz bands of AC23 to enhance the penetration


capability and expand the WiFi coverage





7*6dBi External Antennas for Better WiFi Signal


With 7*6 dBi external antennas and four data streams of 5Ghz band, the AC23 can provide optimized WiFi


coverage and better 5GHz WiFi signal.





Support Fiber Internet Up to 1000Mbps


Adopting full Gigabit port design to meet the requirements of optical fiber access within 1000M


(100M/200M/300M/500M, etc.), giving full play to the advantages of high-speed bandwidth within 1000M




Multi-core Design Bring a More Stable Operation


The 28nm 1GHz CPU equipped with 500MHz co-processor, dual-core design along with ethernet


process brings a faster processing speed and provides optimized operation.




Support IPv6 Protocol


AC23 supports IPv6, it can reduce the data transmission time and minimize the lag, provide a


better gaming experience.





Multi language firmware optional


Currently supported languages: English, Chinese, Latin Portugal, Czech, German, French, Hungarian,


Italian, Korean, Latin Spain, Netherlands, Poland, Portugal, Romania, Russian, Turkish, Ukrainian







Specifications of AC2100


Hardware
Standard&Protocol
IEEE802.3, IEEE802.3u,IEEE802.3ab

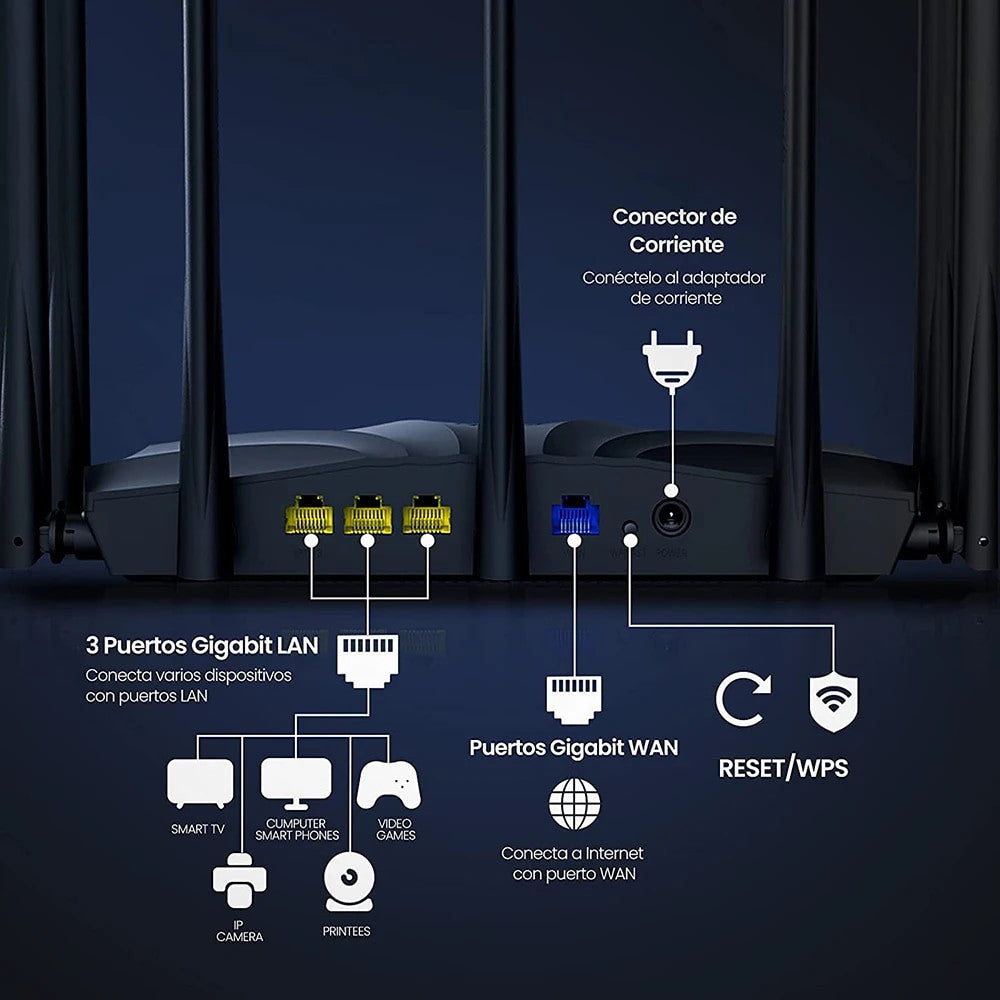

Interfaces
1*10/100/1000Mbps WAN port
3*10/100/1000Mbps LAN ports
Antennas
7*6dBi external antennas
Buttons
1* WPS/Reset button
Power
Input：AC 100-240V~50/60Hz 0.6A
Output：DC 12V1.5A
Dimensions
9.41 * 5.68 * 1.59 in(238.9*144.3*40.3mm)
LED indicators
Sys*1,WAN*1, LAN*1,WiFi/WPS*1


Wireless
Wireless Standards
IEEE 802.11ac wave2/a/n 5GHz
IEEE 802.11b/g/n 2.4GHz
Data Rate
5GHz: Up to 1733Mbps
2.4GHz: Up to 300Mbps
Frequency
Simultaneous dual band 2.4 & 5GHz
Transmission Power
CE:
<20dBm(2.4G)
<23dBm(5G)
Basic Features
SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
MU-MIMO
Wireless Security
WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable

WPS(WiFi Protected Set-up) fast encryption


Software
Internet Connection Type
PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Operating Mode
Wireless Router Mode
Universal Repeater Mode
WISP Mode
DHCP Server
DHCP Server
DHCP Client List
DHCP Reservation
Virtual Server
Port Forwarding
DMZ Host
UPnP
Security
Client Filter
Parental Control(support black list and white list)
Remote Web Management
Firewall
Forbid UDP flood attack
Forbid TCP flood attack
Forbid ICMP attack
Forbid WAN PING from internet
DDNS
no-ip,DynDNS,Oray, 88ip
VPN
IPsec pass through
PPTP pass through
L2TP pass through
PPTP server
PPTP client
L2TP client
Special Features
Smart Traffic Prioritisation
PPPoE Username/password Clone
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda Cloud
Tenda App
Others
Bandwidth Control
Guest Network
IPTV
MAC Clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser
Supports IPv6
Others
Temperature
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃.
Humidity
Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.
Default Settings
Default Access: tendawifi.com
Certifications
CE/FCC/RoHS
EIRP Power (Max)
2.400-2.4835GHz:19.86dBm (EIRP)
5.150-5.250GHz:22.96dBm (EIRP)
Package Contents
Wireles Router*1
Power Adapter *1
Install Guide*1
Ethernet Cable*1



Product Display
