Supported CPU


CPU Socket Type

AM4

CPU Type

Ryzen Series


Chipsets


Chipset

AMD B450


Memory


Number of Memory Slots

4x288pin (DDR4)

Memory Standard

Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
For AMD Ryzen Gen3 (R5/R7/R9)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
For AMD Other CPU
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)

Maximum Memory Supported

128GB

Channel Supported

Dual Channel


Expansion Slots


PCI Express 3.0 x16

1 x PCIe 3.0 x16 slot (PCI_E1)
Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors
Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors
Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors

PCI Express 2.0 x16

1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)

PCI Express x1

2 x PCIe 2.0 x1 slots


Storage Devices


SATA 6Gb/s

4 x SATA 6Gb/s

M.2

2 x M.2


Onboard Audio


Audio Channels

7.1 Channels


Onboard LAN


Max LAN Speed

10/100/1000Mbps

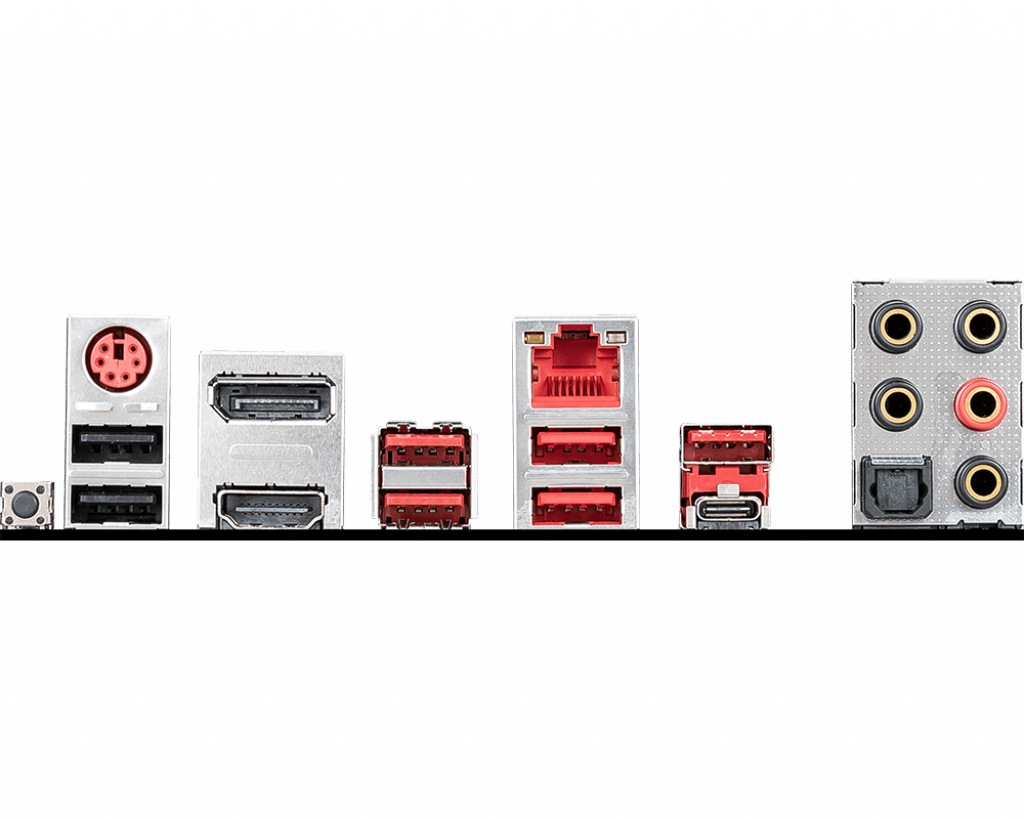

Rear Panel Ports


PS/2

1 x PS/2 keyboard/mouse port

HDMI

1 x HDMI

RJ45

1 x RJ45

DisplayPort

1 x DisplayPort

USB 3.1

6 x USB 3.1

USB 1.1/2.0

6 x USB 2.0

USB Type-C

1 x USB 3.1

S/PDIF Out

1 x Optical

Audio Ports

5 Ports


Internal I/O Connectors


Onboard USB

2 x USB 2.0


Physical Spec


Form Factor

m-ATX

Frontier General Hardware

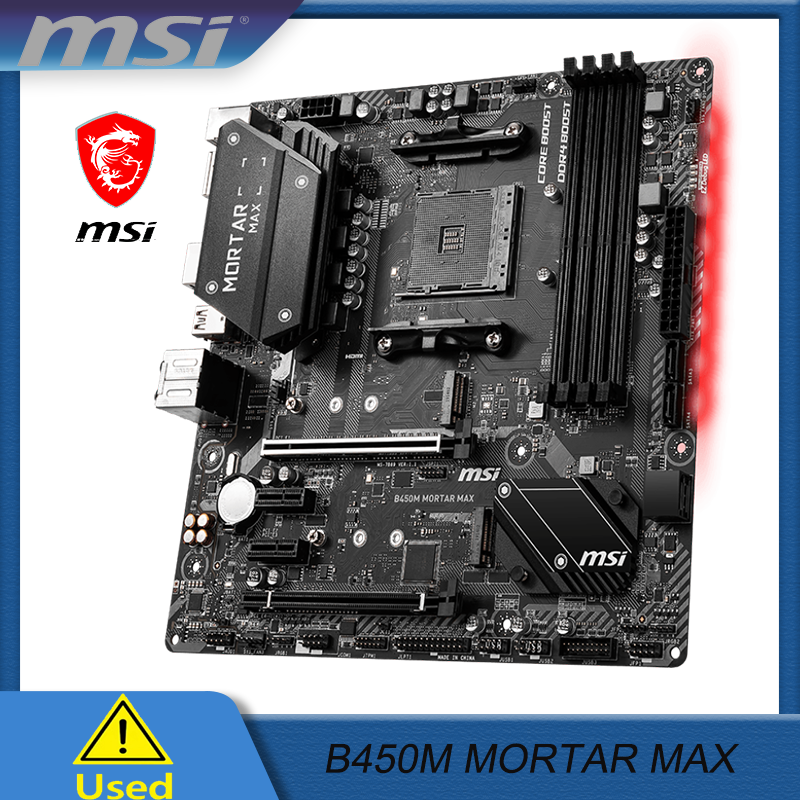

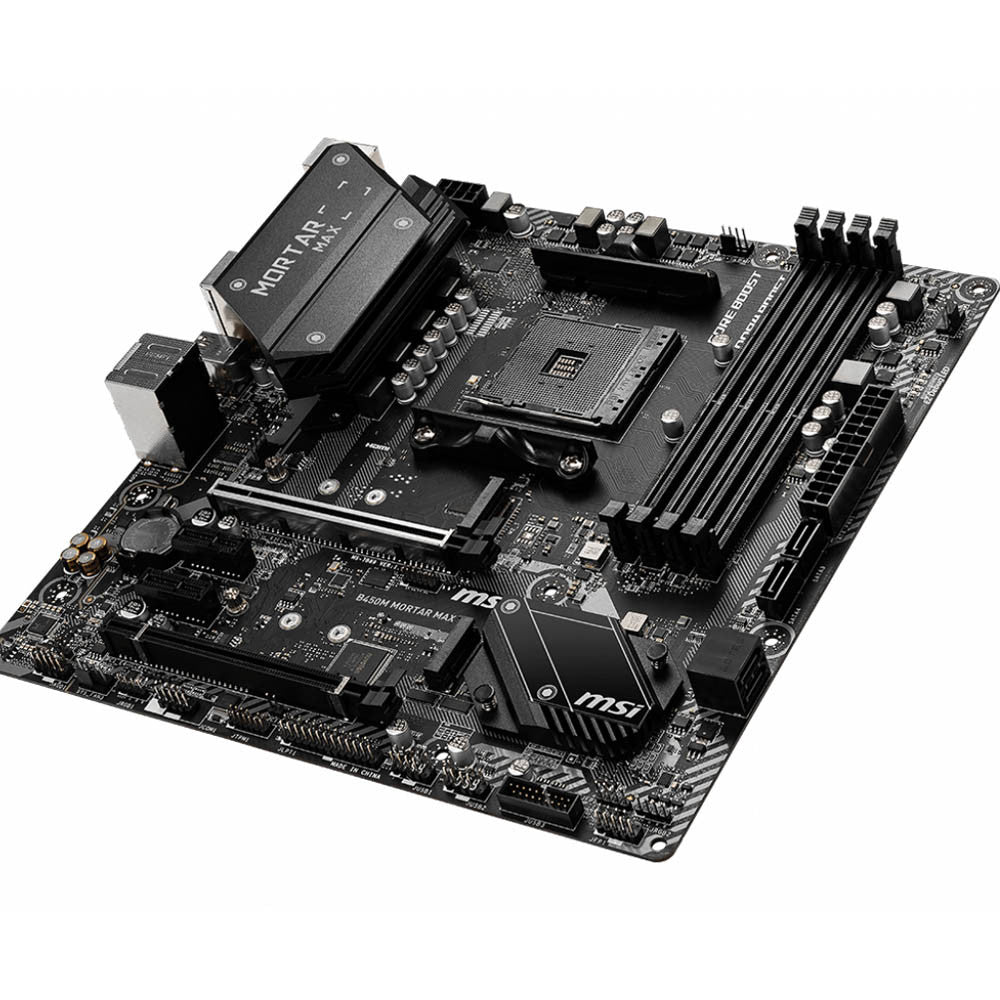

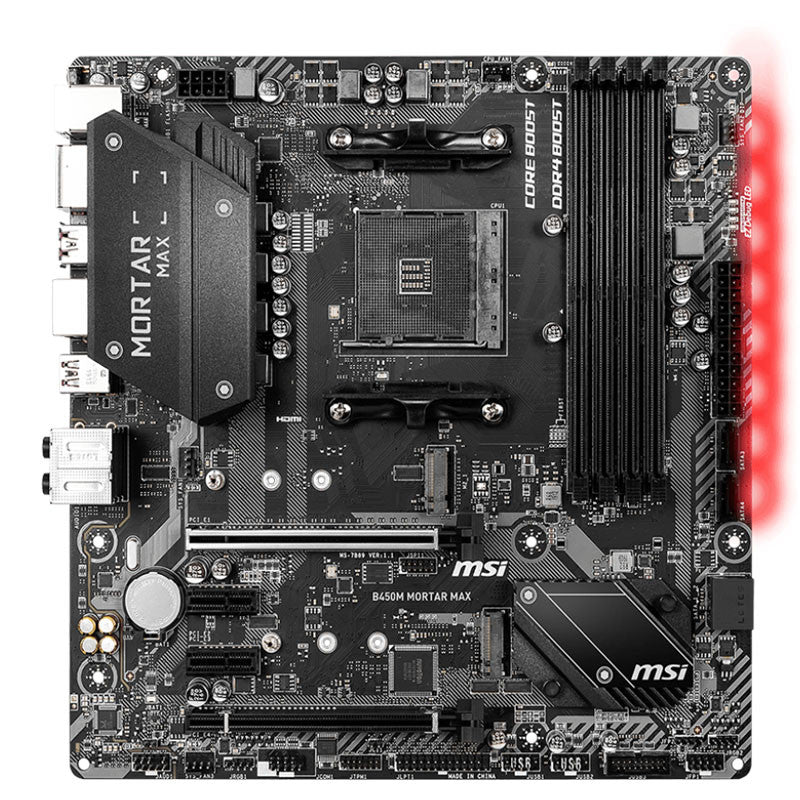

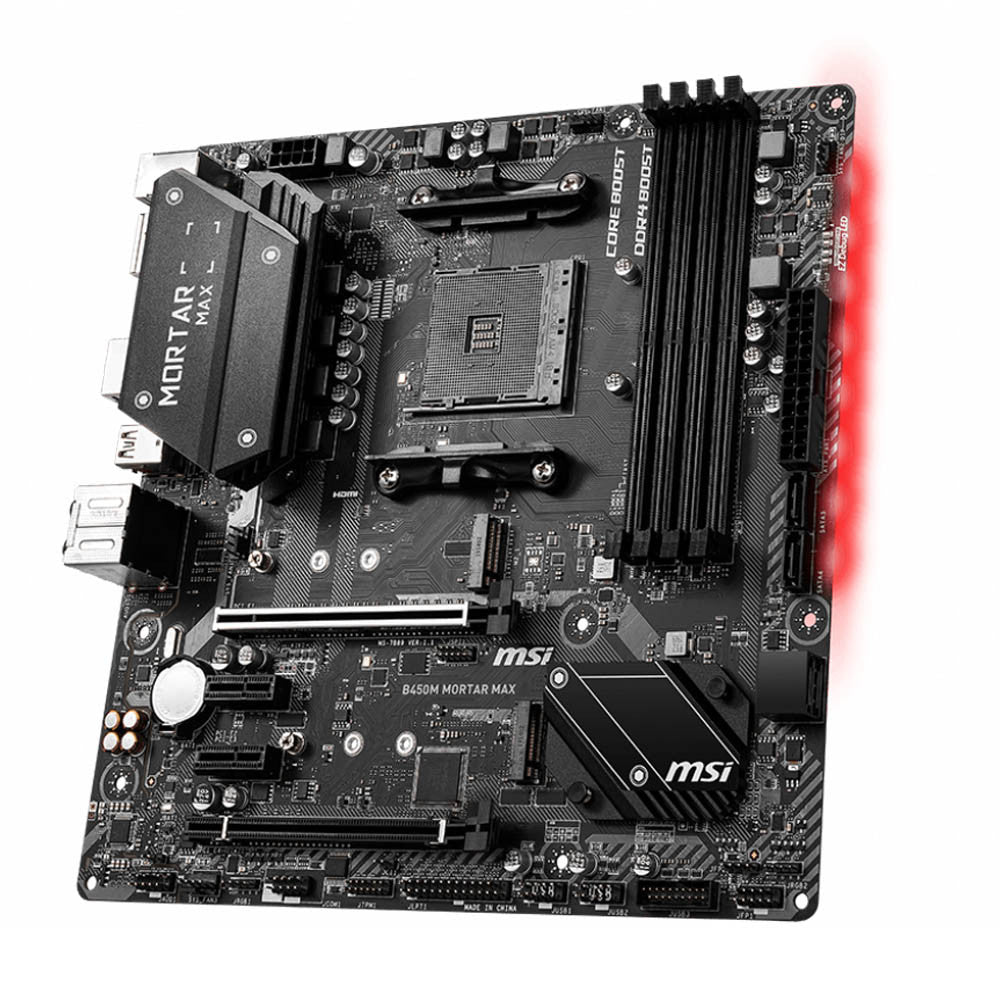

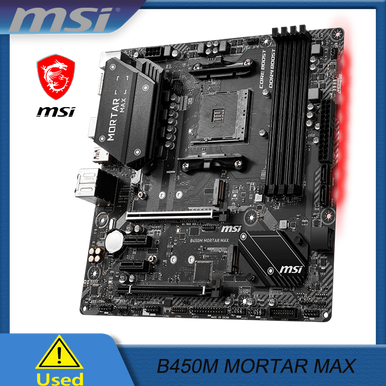

MSI B450M MORTAR MAX motherboard supports up to Ryzen 9 Adopt chipse 4xDDR4t Socket AM4 PCI-E 3.0 Max 128GB 2×M.2

SKU BP-5030-MSI-Def
$176.26
