Material:Brass

Max Pressure:229 PSI,1.6 Mpa
Operaturing Temperature:-20 to 120 ℃

Application: air conditioning branch pipes, refrigeration equipment, ship pipes, copper water pipes, medical oxygen pipes, etc.

6.35mm = SAE 1/4" (Fit Nut Thread 7/16"-20 UNF)
9.52mm = SAE 3/8" (Fit Nut Thread 5/8"-18 UNF)
12.7mm = SAE 1/2" (Fit Nut Thread 3/4"-16 UNF)
15.88mm = SAE 5/8" (Fit Nut Thread 7/8"-14 UNF)
19.05mm = SAE 3/4" (Fit Nut Thread 17/16" UNF)

Frontier General Hardware

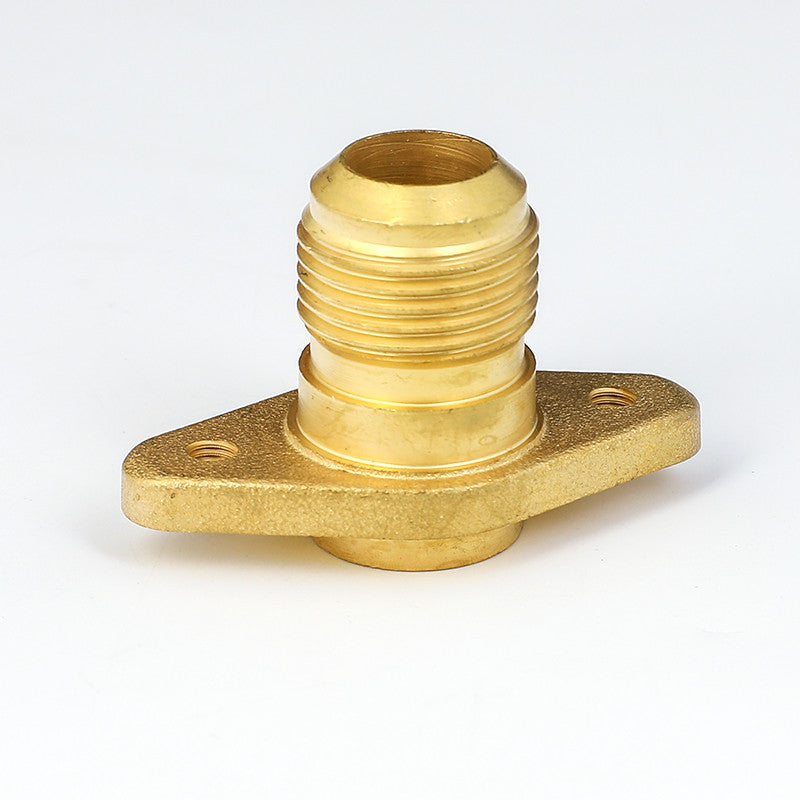

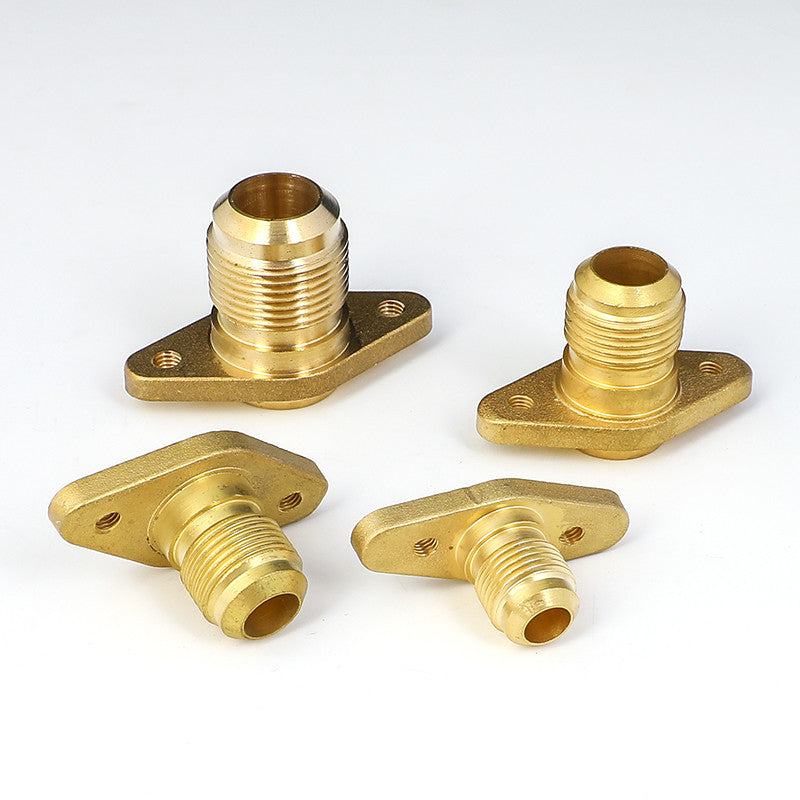

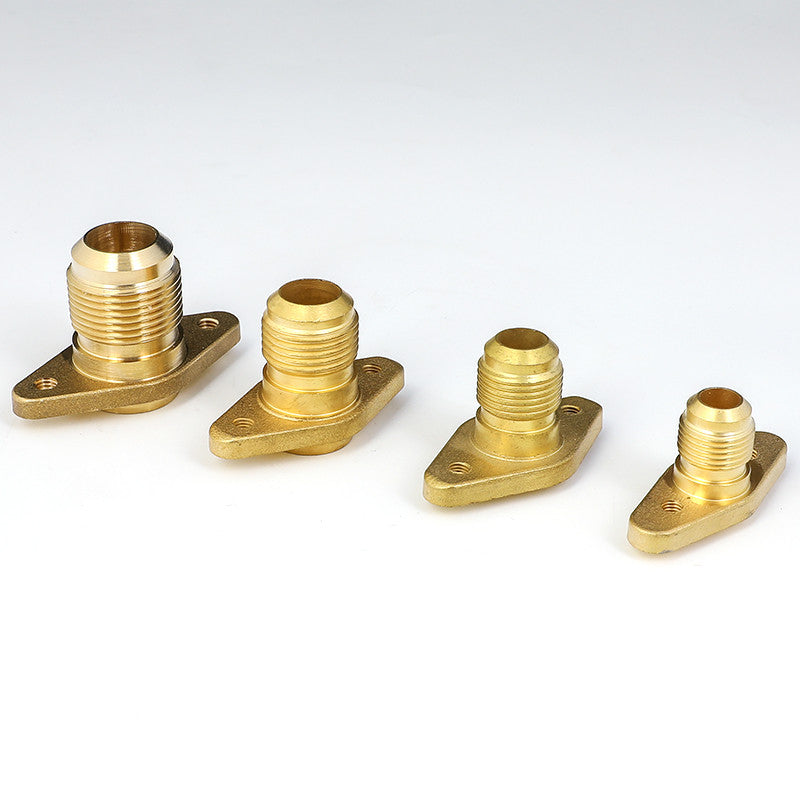

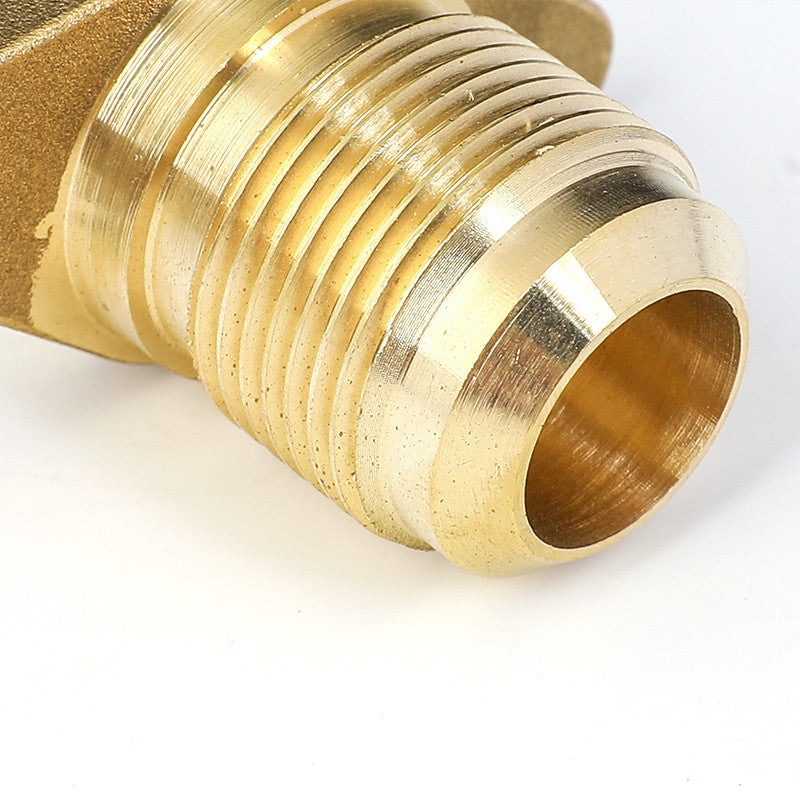

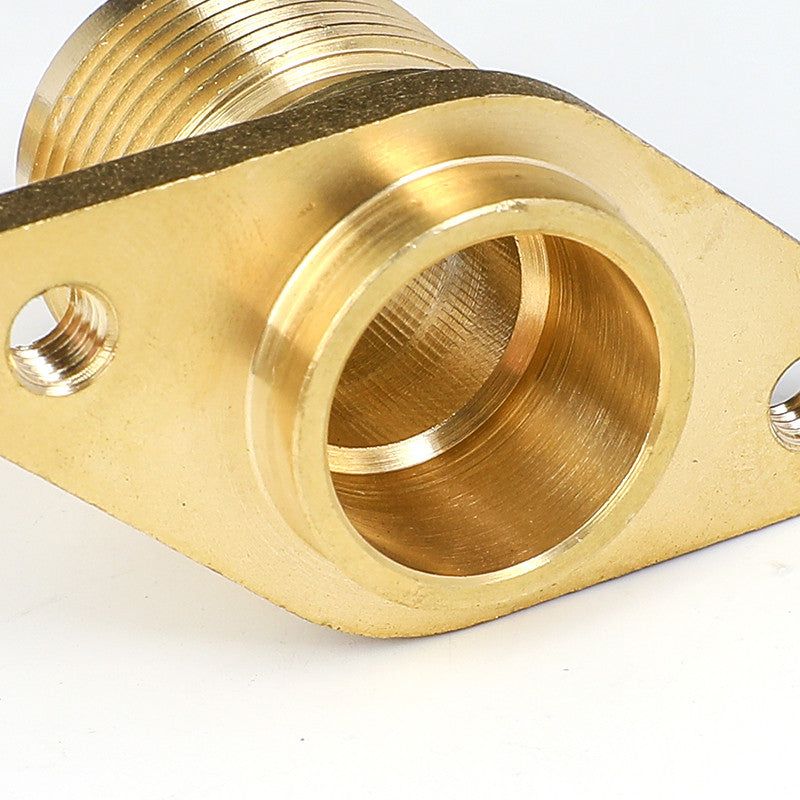

Brass Air Conditioner Forged SAE 1/4 1/2 fit UNF Thread Welding Flange Base Valve Seat Flare Connecting Pipe Fitting Adapeter

SKU 300473 | Thread Specification: 1I4 SAE
$4.13

Material:Brass

Max Pressure:229 PSI,1.6 Mpa
Operaturing Temperature:-20 to 120 ℃

Application: air conditioning branch pipes, refrigeration equipment, ship pipes, copper water pipes, medical oxygen pipes, etc.

6.35mm = SAE 1/4" (Fit Nut Thread 7/16"-20 UNF)
9.52mm = SAE 3/8" (Fit Nut Thread 5/8"-18 UNF)
12.7mm = SAE 1/2" (Fit Nut Thread 3/4"-16 UNF)
15.88mm = SAE 5/8" (Fit Nut Thread 7/8"-14 UNF)
19.05mm = SAE 3/4" (Fit Nut Thread 17/16" UNF)
$4.13
Thread Specification:

Material:Brass

Max Pressure:229 PSI,1.6 Mpa
Operaturing Temperature:-20 to 120 ℃

Application: air conditioning branch pipes, refrigeration equipment, ship pipes, copper water pipes, medical oxygen pipes, etc.

6.35mm = SAE 1/4" (Fit Nut Thread 7/16"-20 UNF)
9.52mm = SAE 3/8" (Fit Nut Thread 5/8"-18 UNF)
12.7mm = SAE 1/2" (Fit Nut Thread 3/4"-16 UNF)
15.88mm = SAE 5/8" (Fit Nut Thread 7/8"-14 UNF)
19.05mm = SAE 3/4" (Fit Nut Thread 17/16" UNF)
