Overview

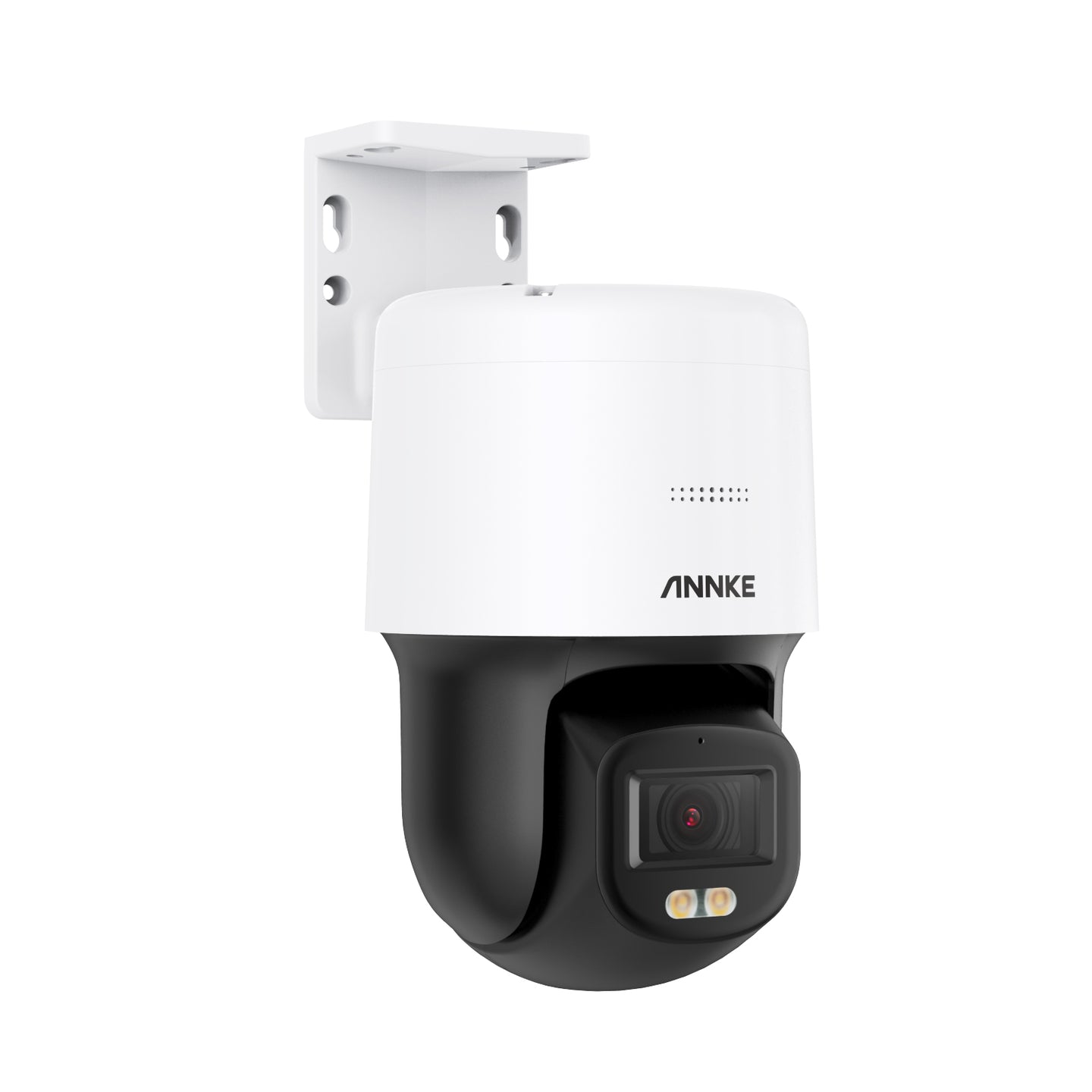

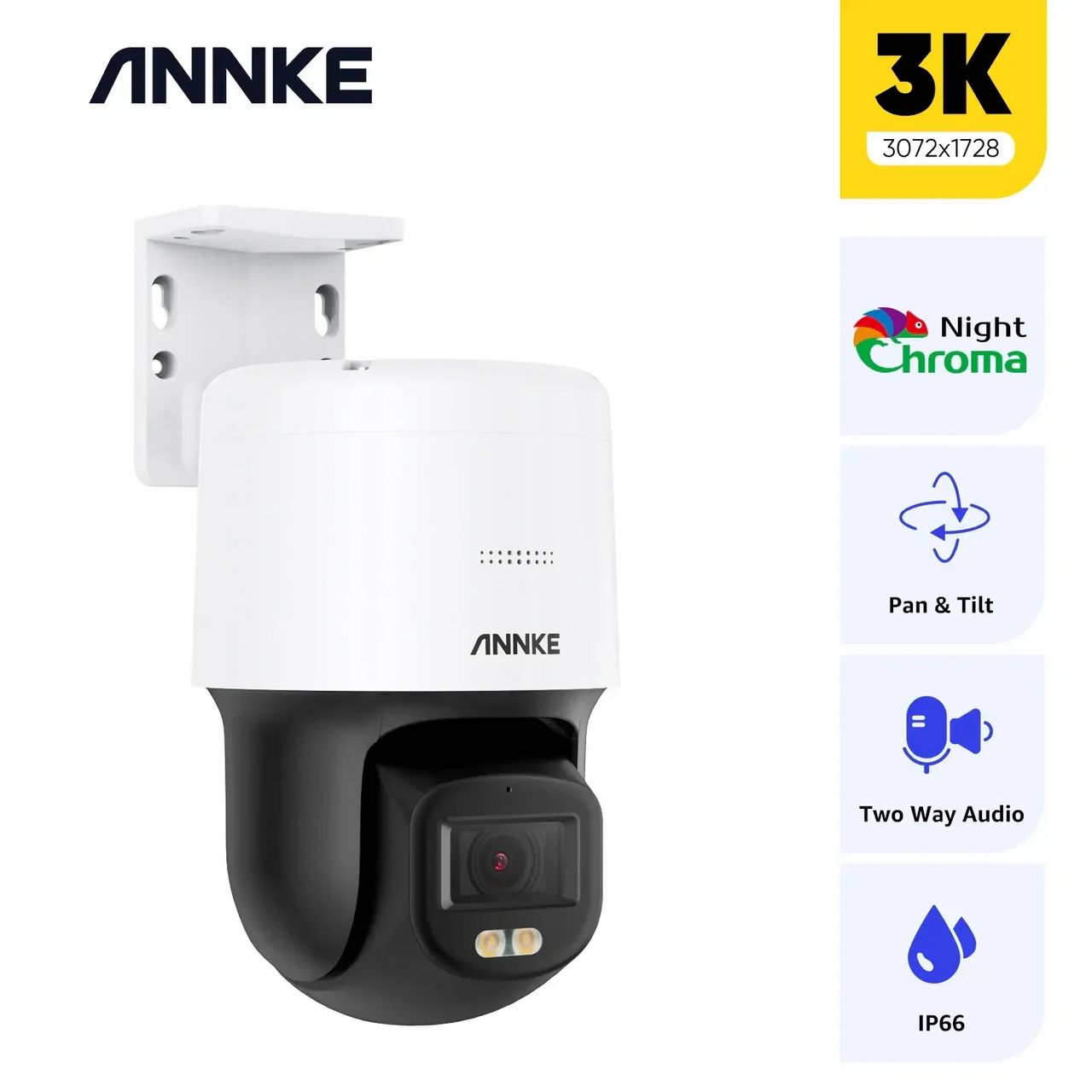

Meet the Annke 6MP POE Full Color Outdoor Security Camera—a robust, weather-ready solution that brings true color imaging to your surveillance, day and night. Equipped with a 1/1.8" progressive scan CMOS sensor, a 2.8 mm lens, and a 16:9 image ratio, this camera captures expansive scenes with impressive detail. Designed for NVR setups, it combines PoE simplicity with reliable recording options, letting you secure your property with fewer cables and more clarity.

Sharp, Wide-Angle Imaging

• Max resolution: 3K (3072 × 1728) with 16:9 aspect ratio for a broad, cinema-like view
• Main stream frame rates: 50 Hz at 20 fps (3072 × 1728); 25 fps at 2560 × 1440, 1920 × 1080, 1280 × 720; 60 Hz at 20 fps (3072 × 1728); 30 fps at 2560 × 1440, 1920 × 1080, 1280 × 720
• Sub-stream frame rates: 50 Hz 25 fps or 60 Hz 30 fps at lower resolutions for efficient remote viewing
• Video compression: Main stream—H.265+/H.265/H.264+/H.264; Sub-stream—H.265/H.264/MJPEG
• Lens: 2.8 mm, F1.0 for a wide field of view
• Horizontal FOV 105.7°, vertical FOV 57.3°, diagonal FOV 124.9°

Night Color Vision and Illumination

• Full-color imaging in low light with a minimum illumination of 0.001 Lux (color) at F1.0 with AGC on; 0 Lux when the smart white light is activated
• Smart white light illumination up to 30 meters to help reveal details in darkness and deter intruders

Two-Way Audio and Real-Time Interaction

• Built-in microphone and speaker enable real-time audio communication for situational awareness and deterrence
• Audio formats include G.711alaw/ulaw and other common codecs to support clear two-way conversations

Storage, Power and Connectivity

• Power options: 12 VDC ±25% (0.75 A, up to 9 W) or PoE (802.3af) (up to 10 W) for simplified cabling

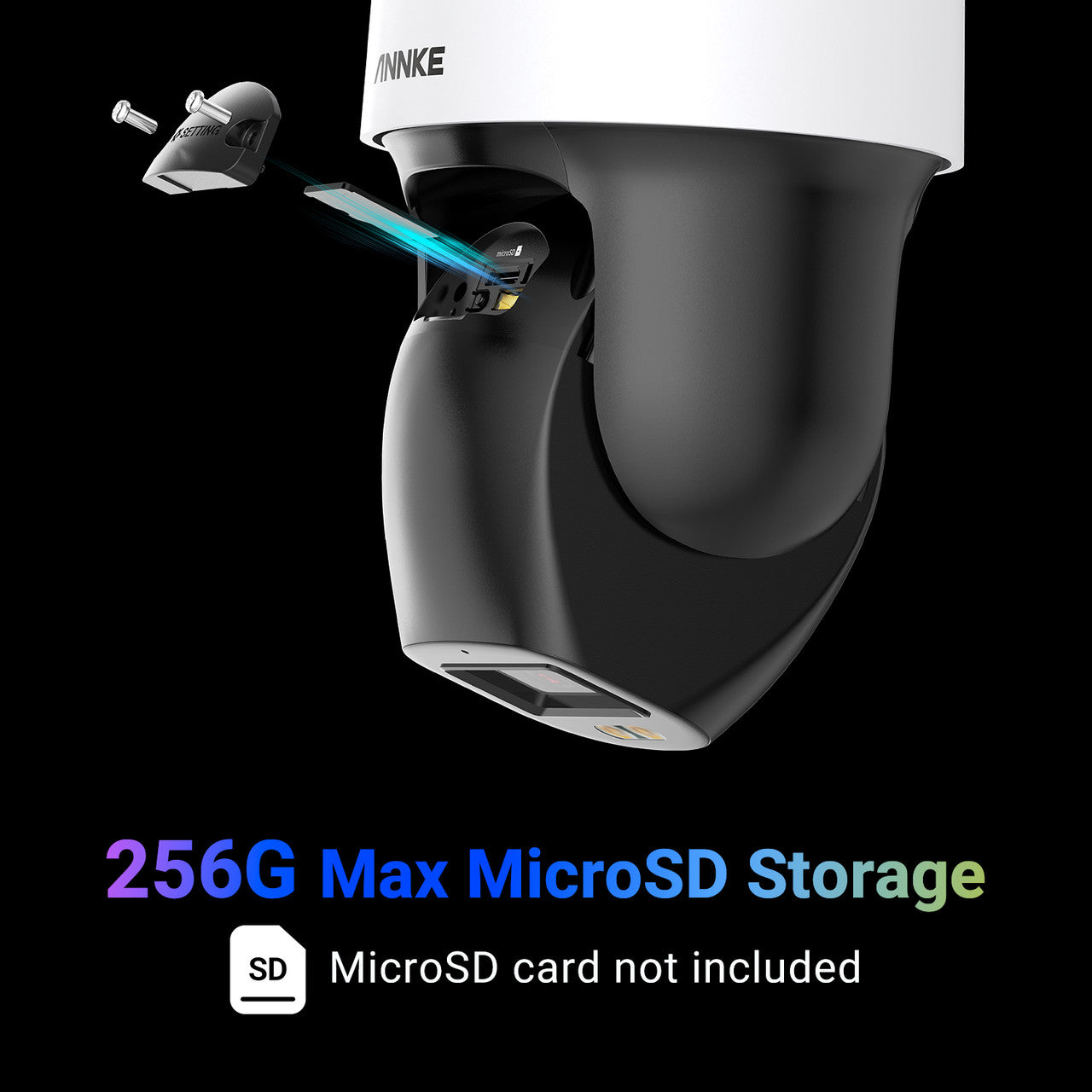

• Storage: MicroSD card slot supports cards up to 256 GB for local recording
• Network: 1 RJ45 Ethernet port with self-adaptive 10/100 Mbps speed

Durability and Environmental Readiness

• Weather resistance: IP66-rated enclosure for dust and water resistance in outdoor conditions
• Operating temperature range: -30°C to 50°C (-22°F to 122°F), suitable for varied climates
• Construction: Outdoor/indoor capable with sturdy plastic housing designed for long-term outdoor use

Video Quality Enhancement and Security Features

• Image enhancement: 3D DNR, BLC, HLC, and WDR to maintain clarity across challenging lighting
• Protection and reliability: DWDR for dynamic range, ensuring important details aren’t washed out
• Protocols: IPv4/IPv6, HTTP/HTTPS, RTSP, RTP, TCP/IP, UDP, DHCP, DNS, DDNS, NTP, and more for flexible integration

What’s in the Box

• 1 X Camera
• 1 X Surveillance Sign
• 1 X Allen wrench
• 1 X Mounting Hole Template
• 1 X Mounting Screw Bag
• 1 X Waterproof Lid
• 1 X User Manual

Why this camera fits your NVR Kit

With PoE power delivery, robust 3K full-color imaging, and two-way audio, this camera is purpose-built for NVR-based security systems. It blends high-resolution daytime detail with color imagery under low light, includes local storage via microSD, and offers a durable, weatherproof design to shield your investment in outdoor environments. The broad field of view, smart lighting, and comprehensive video codecs ensure you capture actionable footage while keeping installation straightforward with a single Ethernet run.
