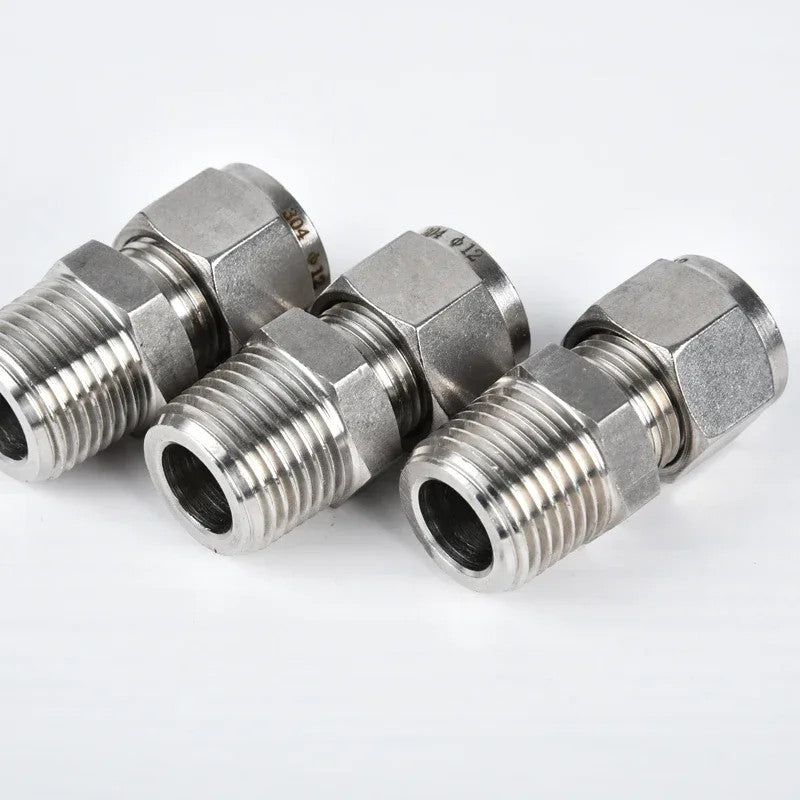

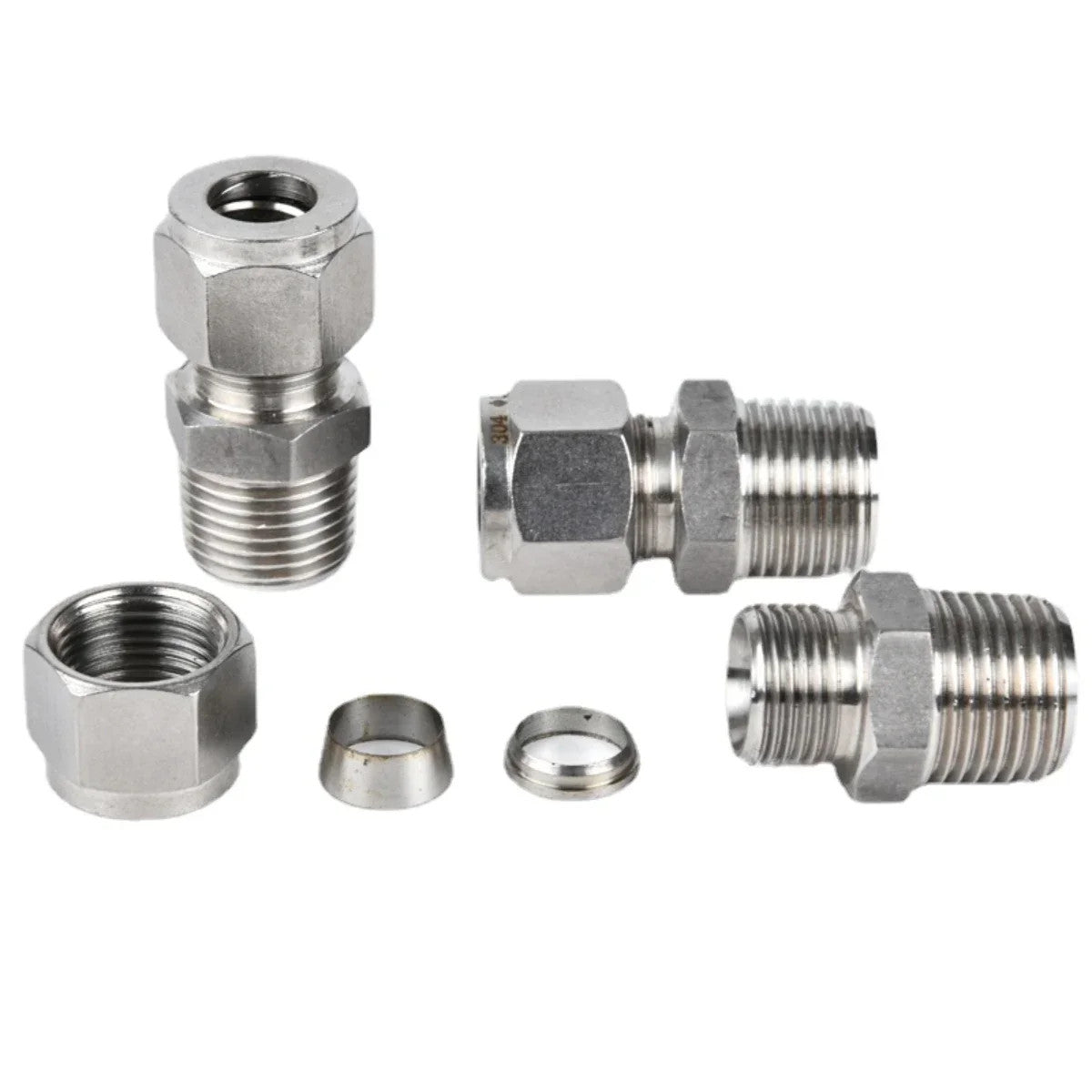

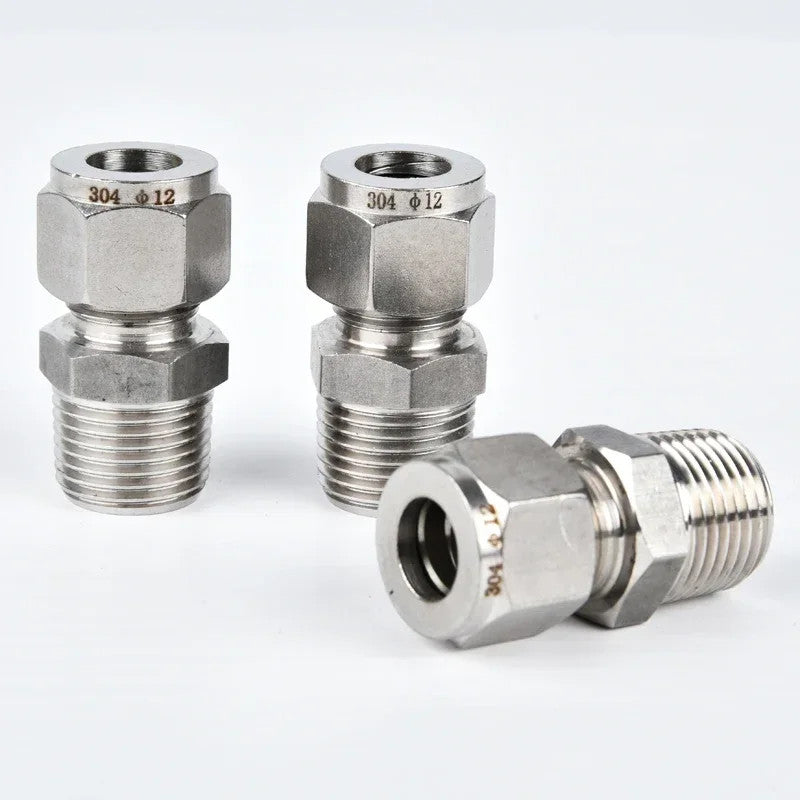

304 stainless steel compression tube union connector built for durable, leak-free performance in oil, water, and gas lines. This NPT Male threaded fitting accommodates a range of tube sizes, delivering versatile compatibility in demanding fluid systems.

Key specifications

• Material: 304 Stainless steel (pipe) with compatibility for stainless steel tubes
• Threads: NPT Male in sizes 1/8", 1/4", 3/8", 1/2"
• Tube OD compatibility: 1/8" (3.175 mm), 1/4" (6.35 mm), 3/8" (9.52 mm), 1/2" (12.7 mm), 3/4" (19.05 mm); metric sizes include 6, 8, 10, 12, 14, 16, 18, 20 mm
• Fluid types: Oil, water, gas
• Operating pressure: 163.15 kgf/cm2 (16 MPa), 160 Bar
• Operating temperature: Up to 450°C

Materials and durability

Constructed from 304 stainless steel, this connector offers corrosion resistance and robust structural integrity for long-term performance in a variety of fluid systems. It supports both tube and pipe materials designed for stainless steel applications, ensuring reliable sealing and tight joins under pressure.

Installation considerations

Note: Nut with metric thread. Verify the correct tube OD and thread size before assembly, and apply appropriate torque to achieve a secure, leak-free seal without overtightening.

What’s included

• 1 PC Connector
