Specification

Name

Mi Smart Projector 2

Product Dimensions

115x150x150mm

Net Weight

1.3kg

Power Consumption

Rated Power < 65W; Standby Power < 0.5W

Rated Input

External Adapter, 19V–3.42A, tookfun

Display Technology

LED Light with DLP technology

Brightnes

500ANSI lumens

Standard Resolution

1920×1080p

Throw ratio

1.2:1

Screen Size

60" to 120"

Lens Focus

Auto Focus

Keystone Correction

Multi-angle auto-keystone correction

Operating System

Android TV™

Built-in Storage

2GB DDR3/16GB eMMC

Bluetooth

Bluetooth 5.0/BLE

Wireless Connectivity

Wi-Fi IEEE 802.11a/b/g/n 2.4GHz/5GHz

Audio Effects

Dolby Audio™

Speaker

2 x 5W Full-range

Noise Level

≤ 28dB(A) at an ambient temperature of 25°C

Storage Temperature/Humidity

-20°C to 55°C/ ≤ 90%

Operating Temperature/Humidity

0°C to 40°C/ 20%–80% 0°C to 40°C/ 20%–80%



Main Features


● Auto-focus ensures a clear image



● Only 28dB for a peaceful viewing experience



● Diffused light reflection for eye comfort



● Four-channel LED RGB+BP brightness improvement technology



● Supports multi-angle auto-keystone correction, across 3 axes and 6 directions to project a perfect square.



● Use your voice to search for shows, control your projector and smart home devices, ask questions, and much more.



● With 1920x1080 Full HD (1080p) resolution, Projects high-resolution images.



● 1.2:1 throw ratio makes it possible to project a large display in a small room



● The integrated structure of a large sound cavity and an ultra-long sound guide tube makes the sound rich and delicate.



● Adopts dual channel virtual surround sound and supports Dolby decoding



● Simplify your entertainment experience with Android TV™*. Access thousands of movies and shows from various platforms in one place.



● Supports 4K input and works with hard drives, game consoles, microphones and more



Detailed parameters

Mi Smart Projector 2


Your portable home cinema

Up to 120 inches large screen / Multi-angle auto-keystone correction*

Clear 1080p images / Certified Android TV™


A perfect square projected at multiple angles


Mi Smart Projector 2 supports multi-angle auto-keystone correction* across 3 axes and 6 directions to project a perfect square.



Smart hub of an IoT-enabled home


Use your voice to search for shows, control your projector and smart home devices, ask questions, and much more*. Press the Google Assistant button on your remote to get started*.

*Compatible devices that support Google Assistant required.


Auto-focus ensures a clear image


The highly sensitive camera improves the focus speed, which also prevents thermal defocus, ensuring the image remains clear and sharp.


Four-channel LED RGB+BP brightness improvement technology


Compared with traditional three-channel LED projection, through adding a channel of blue light, the Rec.709 colour gamut exceeds 154% so that colours feel more real. It also supports HDR10 decoding.


1080p resolution, for high-level clarity


With 1920x1080 Full HD (1080p) resolution*, the Mi Smart Projector 2 projects high-resolution images.


Only 28dB for a peaceful viewing experience


By staying below 28dB* in normal operating conditions, the whisper quiet projector won't interrupt your viewing experience.

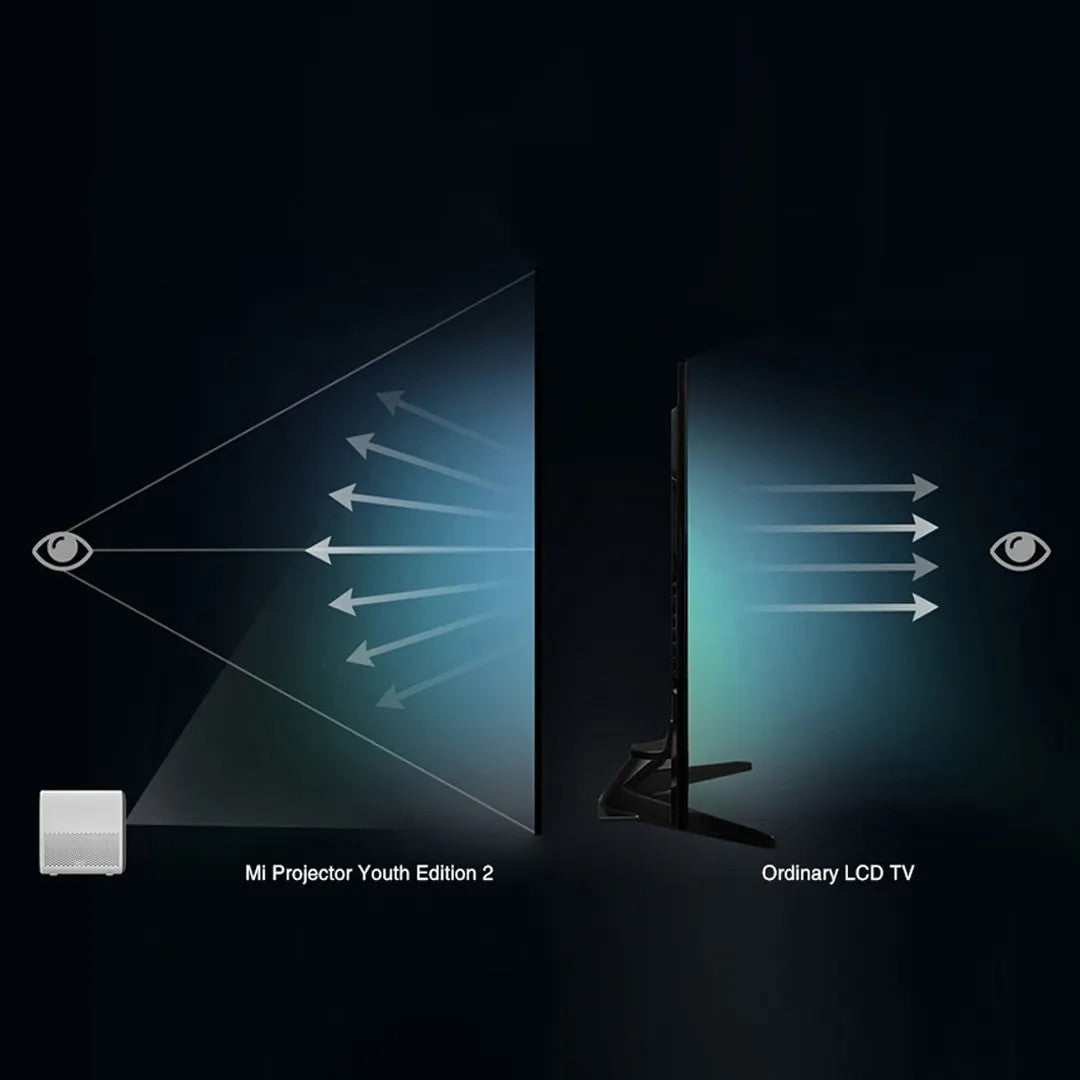

Diffused light reflection for eye comfort


Mi Smart Projector 2 uses diffuse reflection. Unlike traditional LCD TVs, which deliver light directly to your eyes, diffuse reflection causes less strain on eyes, and is more suitable for the young and old.


1.2:1 throw ratio makes it possible to project a large display in a small room


You can easily adjust the throw distance to produce an image of 60''-120''*. Now you can watch films, enjoy concerts and play games, all on the same wall.

*Distances in the below table are approximate and may differ in real-world conditions. Adjustments apply based on your actual dimensions and conditions.

*Mi Smart Projector 2 must be placed perpendicular to the viewing surface in order to reach specified screen sizes with the throw ratio.


Home cinema experience even when placed on a desk


Mi Smart Projector 2 adopts customized cabinet volume and matching caliber. The integrated structure of a large sound cavity and an ultra-long sound guide tube makes the sound rich and delicate. The frequency can also drop as low as 90Hz*. Connect to the Mi Smart Projector 2 through Bluetooth to make it your own desktop sound system.


Enjoy the comfort of immersive sound


Carefully calibrated by the acoustic master*, the Mi Smart Projector 2 adopts dual channel virtual surround sound and supports Dolby decoding*. The life-like human voices and virtual surround sound make you feel like you are right in the action.


Enjoy smarter entertainment


Simplify your entertainment experience with Android TV™*. Access thousands of movies and shows from various platforms in one place. Tookfun


Just the ports you need


With one HDMI-compatible 2.0 port, one USB 2.0 port and one headphone port, the projector supports 4K input and works with hard drives, game consoles, microphones and more, making it perfect for your entertainment needs.


As compact and portable as a work of art


With a body size of 115x150x150mm and covered with fabric material on the front, it makes a perfect artistic addition to your home. Weighing only 1.3kg, pick it up and move it whenever you need.


Notes:

*The display can be any size from 60" to 120"; projection distance and area are deduced based on theoretical approximations. Actual data may vary slightly.

*The multi-angle auto-keystone correction adjustment range is ±45° for the X and Y axis and ±15° for the Z axis.

*Google Assistant is not available in certain countries and languages.

*Brightness, colour gamut and noise value are certified by Beijing CQC Testing Technical Services Ltd., under report No.: CQCTS-212761.

*Master calibrator: Wang Fuyu, Mi TV Acoustics Director performed the calibration tests.

*Dolby Audio™ certification No: #660787

*All data shown above was tested by Formovie Laboratory unless otherwise specified. As all physical environments are different, test data may be different from actual data.

*Images are for illustrative purposes only. Actual effects may vary subject to the specific product.
